YASKAWA

GP Series Sealing & Handling Robots

Yaskawa Motoman has delivered game-changing results for customers of all sizes and industries by providing a singular resource for industrial and collaborative robots, process expetise, as well as integration and service support.

DOWNLOAD BROCHURE

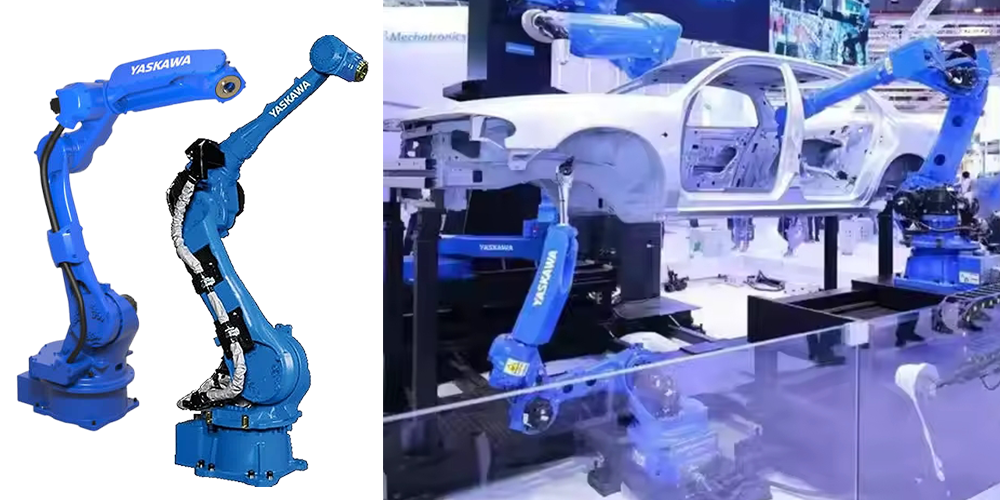

GP-Series

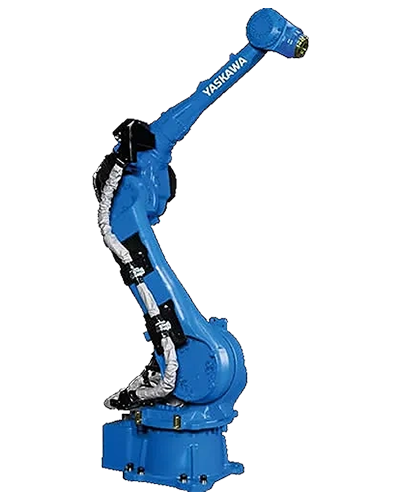

GP50

GP50

Offering high speeds and mounting flexibility for a large range of applications, the GP50 long reach robot offers outstanding performance for increased production output. Fast axis speeds and acceleration capabilities decrease cycle time, while high moment and inertia ratings support the handling of large and heavy payloads. The reduced interference design allows for high-density robot placement, and a streamlined upper arm provides easy access to parts in tight areas.

Specification :

  • Controlled Axes : 6
  • Payload : 50 kg
  • Repeatability : 0.07 mm
  • Weight : 570 kg
  • Power Supply : 4 KVA
  • S Axis : 180 º/sec
  • L Axis : 187 º/sec
  • U Axis : 187 º/sec
  • R Axis : 250 º/sec
  • B Axis : 250 º/sec
  • T Axis : 360 º/sec

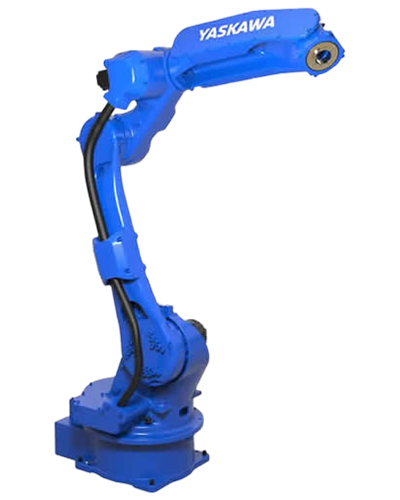

GP25

GP25

The MOTOMAN GP25 is a compact and flexible handling robot which provides a payload of 25 kg.

Specification :

  • Controlled Axes : 6
  • Payload : 25 kg
  • Max working range : 1730 mm
  • Repeatability : 0.06 mm
  • Weight : 250 kg
  • Power Supply : 2 KVA
  • S Axis : 210 º/sec
  • L Axis : 210 º/sec
  • U Axis : 265 º/sec
  • R Axis : 420 º/sec
  • B Axis : 420 º/sec
  • T Axis : 885 º/sec
