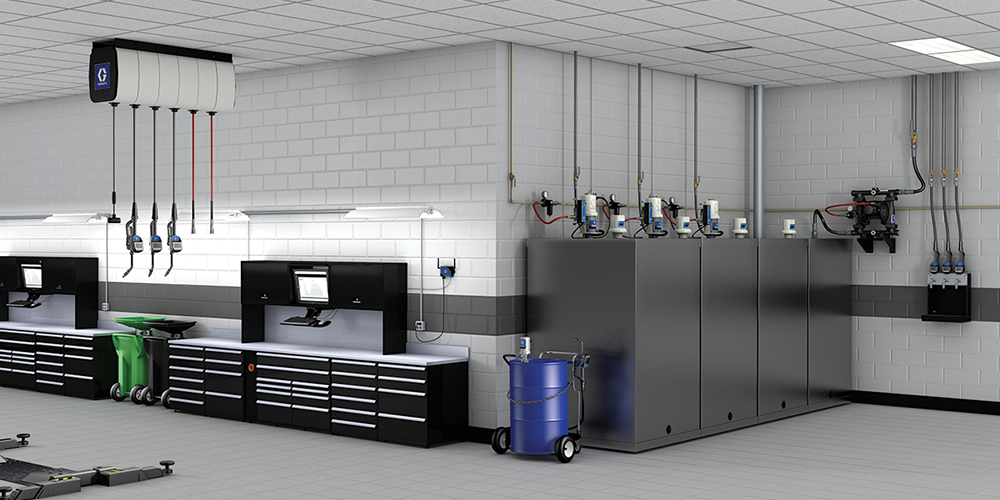

Pulse Pro Fluid Management
Graco's Pulse® Pro Fluid Management system is an innovative wireless fluid management system for vehicle and fleet service. The Pulse Pro system provides forward-thinking service operations with the insight, control and analytics needed to simplify decisions and drive profitability in the age of the seamlessly connected shop.
DOWNLOAD BROCHURE

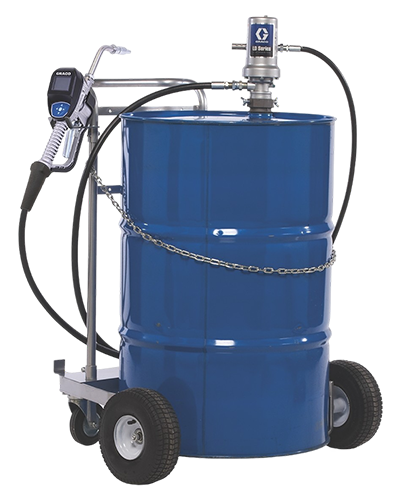

25D948
Pulse® Roll-Around Package - Meter with Rigid Extension
Specification :
- Maximum Working Pressure (bar) : 52
- Maximum Working Pressure (psi) : 750
- Model : Pulse
- Product Type : Meter
- Type : Dispense Package

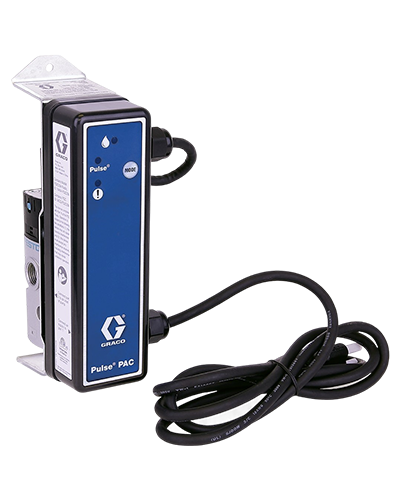

24Z676
Pulse® Pump Air Control - NPT with 6 ft. SJOOW, 3-Wire, 18-Gauge Cable with Flying Leads
Specification :
- For Use With : Pulse Fluid Management
- Frequency (Hz) : 2.4
- Maximum Operating Pressure (psi) : 145
- Minimum Operating Pressure (psi) : 36
- Model : Pulse
- Power Supply (VAC) : 100-240
- Product Type : Pump Air Control (PAC)
- Type : Air Controller

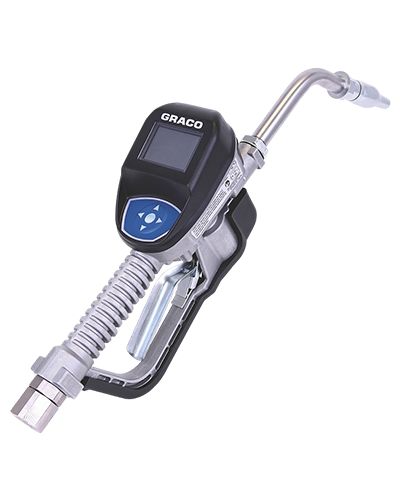

25M323
Pulse® Metered Dispense Valve for Oil Applications - 1/2 in NPT, Rigid Extension, High Flow Nozzle
Specification :
- Display Type : LCD
- Extension Type : Rigid
- Fluid Inlet Thread Gender : Female
- Includes : Extension, Nozzle, Batteries, Swivel Boot
- Inlet Size (in) : 1/2
- Inlet Thread Type : NPT
- Maximum Operating Temperature (°C) : 70
- Maximum Storage Temperature (°C) : 70
- Maximum Working Pressure (bar) : 103.4
- Maximum Working Pressure (psi) : 1500
- Meter Accuracy (%) : ±0.5
- Meter Technology : Oval Gear
- Metering Gun Weight (kg) : 2.4
- Minimum Flow Rate (l/min) : 0.9
- Minimum Operating Temperature (°C) : -16
- Model : Pulse
- Nozzle Type : High Flow
- Overall Length (mm) : 330
- Overall Width (mm) : 95
- Product Type : Meter
- Trigger Lock : Locking
- Type : Electronic Metered Dispense Valve
- Unit of Measure : Pint, Quart, Gallon, Liter
- Construction : Aluminum, Stainless Steel, PBT, Nitrile Rubber, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

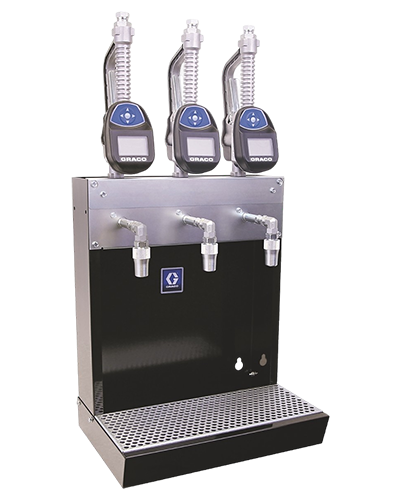

25D121
Pulse® Oil Bar Console
Oil bar console kit includes sheet metal enclosure components and drain pan.
Specification :
- Drain Hose Size (in) : 0.75
- Drain Hose Size (mm) : 19.05
- Maximum Working Pressure (kPa) : 630
- Model : Pulse
- Overall Height (mm) : 574.04
- Overall Length (mm) : 337
- Overall Width (mm) : 464.82
- Product Type : Oil Bar
- Type : Dispense Bar
- Weight (kg) : 13.61

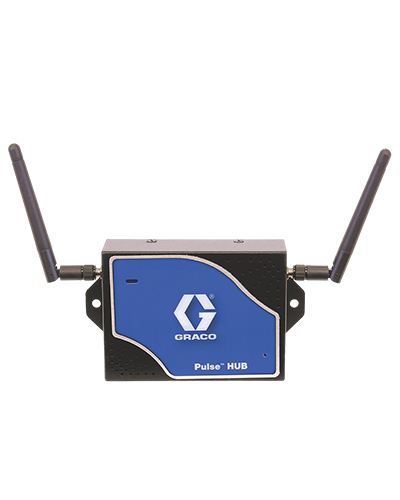

25D454
Pulse® Hub (EU)
Graco's intuitive software for Pulse® Fluid Management has been custom developed to control every component within the Pulse network. Generated by the Pulse Hub you can connect to dispense meters, pump air controllers and tank level monitors.
Specification :
- For Use With : Pulse Fluid Management
- Includes : 3 x Antenna, Universal Power Supply
- Maximum Operating Temperature (°C) : 70
- Maximum Voltage (V ac) : 240
- Number of Pieces : 4
- Overall Depth (mm) : 32.5
- Overall Height (mm) : 82.6
- Overall Width (mm) : 114.3
- Power Type : Electric
- Product Type : Hub
- Type : Controller
- Weight (kg) : 0.45
