GRACO

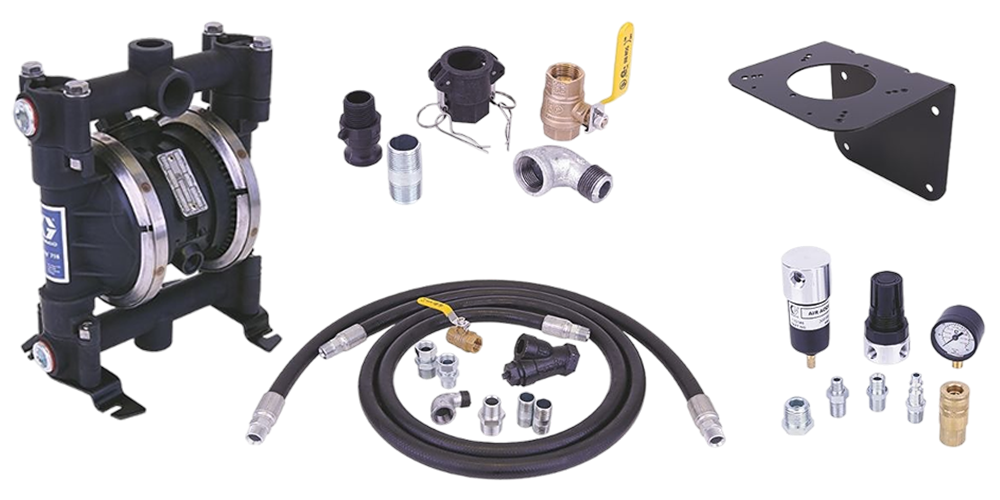

HUSKY AODD Pumps

Graco’s Husky air operated diaphragm pumps feature corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals and solvents. Husky diaphragm pumps can be configured to meet abrasion, temperature and chemical compatibility requirements. Also, they stall against pressure and achieve high flow rates, while minimizing air consumption and operational noise.

DOWNLOAD BROCHURE
HUSKY

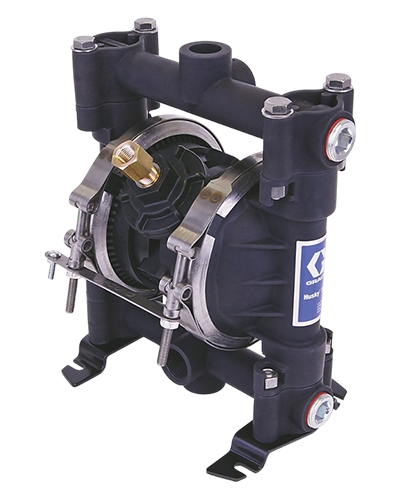

241906

241906

Husky 716 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation/Transfer, Water, Antifreeze, Windshield Wash Fluid

Specification :

  • Air Exhaust Port Size (in) : 3/8
  • Air Exhaust Port Thread Gender : Female
  • Air Exhaust Port Thread Type : NPT
  • Air Inlet Size (in) : 1/4
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Application : Industrial
  • Ball Material : Buna-N
  • Compatible Material : Oil, Water, Antifreeze, Windshield Washer Fluid
  • Connection Type : Threaded
  • Construction : Aluminum, Buna-N, PTFE
  • Diaphragm Material : Buna-N
  • Fluid Inlet Size (in) : 3/4
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 3/4
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • Fluid Section Material : Aluminum
  • For Use With : Oil, Water, Anti-freeze, Washer Fluid, Used Oil
  • Manifold O-Ring Material : PTFE
  • Material : Aluminum
  • Maximum Air Pressure (bar) : 7
  • Maximum Air Pressure (psi) : 100
  • Maximum Cycle Rate (cpm) : 400
  • Maximum Flow Rate (l/min) : 60.6
  • Maximum Fluid Pressure (bar) : 7
  • Maximum Fluid Pressure (psi) : 100
  • Maximum Operating Temperature (°C) : 82
  • Maximum Solid Size (mm) : 2.4
  • Minimum Operating Temperature (°C) : 4
  • Model : Husky
  • Power Source : Air
  • Seat Material : Polypropylene
  • Series : 716
  • Standards Met : CE
  • Type : Pneumatic Diaphragm Pump

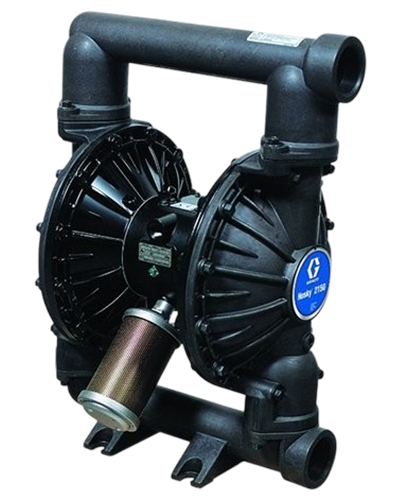

DF3311

DF3311

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Specification :

  • Air Exhaust Port Size (in) : 3/4
  • Air Exhaust Port Thread Gender : Female
  • Air Exhaust Port Thread Type : NPT
  • Air Inlet Size (in) : 1/2
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Application : Industrial
  • Ball Material : PTFE
  • Centre Section Material : Aluminum
  • Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
  • Connection Type : Threaded
  • Construction : Aluminum, Stainless Steel, PTFE/EPDM
  • Diaphragm Compatible Material : PTFE
  • Diaphragm Material : PTFE/EPDM 2-Piece
  • Fluid Inlet Size (in) : 2
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 2
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • Fluid Section Material : Aluminum
  • Manifold Configuration : End Port
  • Manifold O-Ring Material : PTFE
  • Material : Aluminum
  • Maximum Air Pressure (bar) : 8
  • Maximum Air Pressure (psi) : 120
  • Maximum Cycle Rate (CPM) : 145
  • Maximum Flow Rate (L/min) : 568
  • Maximum Fluid Pressure (bar) : 8
  • Maximum Fluid Pressure (psi) : 120
  • Maximum Operating Temperature (°C) : 82
  • Maximum Solid Size (mm) : 6.35
  • Model : Husky
  • Power Source : Air
  • Seat Material : Stainless Steel
  • Series : 2150
  • Standards Met : ATEX, CE
  • Type : Pneumatic Diaphragm Pump
  • Type : Pneumatic Diaphragm Pump
D52311

D52311

Husky 515 PP 1/2 in NPT Standard Pump, PP Centre Section, SS Seats, PTFE Balls & PTFE Diaphragm

Specification :

  • Air Exhaust Port Size (in) : 3/8
  • Air Exhaust Port Thread Gender : Female
  • Air Exhaust Port Thread Type : NPT
  • Air Inlet Size (in) : 1/4
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Application : Industrial
  • Ball Material : PTFE
  • Centre Section Material : Polypropylene
  • Compatible Material : Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Waste water Treatment, Ink
  • Compressor Required : Yes
  • Connection Type : Threaded
  • Diaphragm Compatible Material : PTFE
  • Diaphragm Material : PTFE/EPDM 2-Piece
  • Fluid Inlet Size (in) : 1/2
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 1/2
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • Fluid Section Material : Polypropylene
  • Manifold Configuration : Centre Port
  • Manifold O-Ring Material : PTFE
  • Material : Polypropylene
  • Maximum Air Consumption (SCFM) : 28
  • Maximum Air Pressure (psi) : 100
  • Maximum Cycle Rate (cpm) : 400
  • Maximum Flow Rate (l/min) : 57
  • Maximum Fluid Pressure (bar) : 7
  • Maximum Fluid Pressure (psi) : 100
  • Maximum Operating Temperature (°C) : 66
  • Maximum Solid Size (mm) : 2.4
  • Minimum Operating Temperature (°C) : 4
  • Model : Husky
  • Power Source : Air
  • Seat Material : Stainless Steel
  • Series : 515
  • Standards Met : ATEX, CE
  • Type : Pneumatic Diaphragm Pump

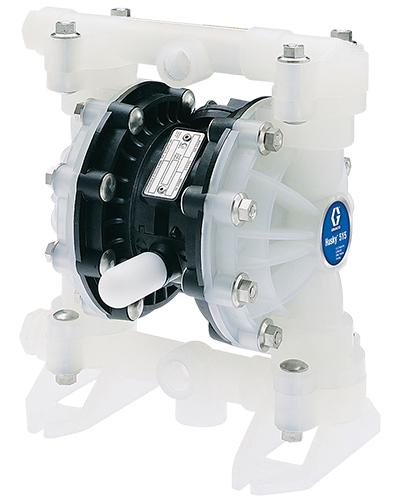

D52911

D52911

Husky 515 PP 13 mm NPT Standard Pump, PP Centre Section, PP Seats, PTFE Balls & PTFE Diaphragm

Specification :

  • Air Exhaust Port Size (in) : 3/8
  • Air Exhaust Port Thread Gender : Female
  • Air Exhaust Port Thread Type : NPT
  • Air Inlet Size (in) : 1/4
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Application : Industrial
  • Ball Material : PTFE
  • Centre Section Material : Polypropylene
  • Compatible Material : Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Waste water Treatment, Ink
  • Compressor Required : Yes
  • Connection Type : Threaded
  • Diaphragm Compatible Material : PTFE
  • Diaphragm Material : PTFE/EPDM 2-Piece
  • Fluid Inlet Size (in) : 1/2
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 1/2
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • Fluid Section Material : Polypropylene
  • Manifold Configuration : Centre Port
  • Manifold O-Ring Material : PTFE
  • Material : Polypropylene
  • Maximum Air Pressure (bar) : 7
  • Maximum Air Pressure (psi) : 100
  • Maximum Cycle Rate (cpm) : 400
  • Maximum Flow Rate (l/min) : 57
  • Maximum Fluid Pressure (bar) : 7
  • Maximum Fluid Pressure (psi) : 100
  • Maximum Operating Temperature (°C) : 66
  • Maximum Solid Size (mm) : 2.4
  • Minimum Operating Temperature (°C) : 4
  • Model : Husky
  • Power Source : Air
  • Seat Material : Polypropylene
  • Series : 515
  • Standards Met : ATEX, CE
  • Type : Pneumatic Diaphragm Pump
  • Wetted Material : Polypropylene, PTFE/EPDM

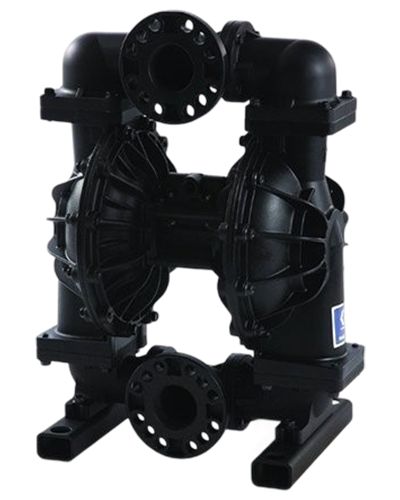

652036

652036

Husky 3300 (ANSI/DIN/NPT) Al Pump, AL Centre Section with BN Seals, SP Seats, SP Balls & SP Diaphragm

Specification :

  • Air Exhaust Port Size (in) : 1
  • Air Exhaust Port Thread Gender : Female
  • Air Exhaust Port Thread Type : NPT
  • Air Inlet Size (in) : 3/4
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Application : Industrial
  • Ball Material : Santoprene
  • Centre Section Material : Aluminium
  • Compatible Material : Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Waste water Transfer
  • Connection Type : Centre Flange ANSI/DIN, Threaded
  • Diaphragm Compatible Material : Santoprene
  • Diaphragm Material : Santoprene
  • Fluid Inlet Size (in) : 3
  • Fluid Inlet Thread Gender : Female
  • Fluid Outlet Size (in) : 3
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • Fluid Section Material : Aluminium
  • Manifold Configuration : Centre Port
  • Manifold O-Ring Material : Buna-N
  • Material : Aluminium
  • Maximum Air Pressure (bar) : 8.6
  • Maximum Air Pressure (psi) : 125
  • Maximum Cycle Rate (cpm) : 103
  • Maximum Flow Rate (l/min) : 1136
  • Maximum Fluid Pressure (bar) : 8.6
  • Maximum Fluid Pressure (psi) : 125
  • Maximum Operating Temperature (°C) : 82
  • Maximum Solid Size (mm) : 12.7
  • Minimum Operating Temperature (°C) : 0
  • Minimum Storage Temperature (°C) : 0
  • Model : Husky
  • Power Source : Air
  • Seat Material : Santoprene
  • Series : 3300
  • Standards Met : ATEX, CE
  • Type : Pneumatic Diaphragm Pump
  • Wetted Material : Aluminium, Santoprene, Buna-N
647666

647666

Husky 1050 AL 25.4 mm (1 in.) NPT Pump, Standard AL Centre Section, TPE Seats, AC Balls & TPE Diaphragm

Specification :

  • Air Exhaust Port Size (in) : 3/4
  • Air Exhaust Port Thread Gender : Female
  • Air Exhaust Port Thread Type : NPT
  • Air Inlet Size (in) : 1/2
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Application : Industrial
  • Ball Material : Acetal
  • Centre Section Material : Aluminium
  • Compatible Material : Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Waste water Transfer
  • Connection Type : Threaded
  • Diaphragm Compatible Material : TPE
  • Diaphragm Material : TPE (Hytrel)
  • Fluid Inlet Size (in) : 1
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 1
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • Fluid Section Material : Aluminium
  • Manifold Configuration : Centre Port, End Port
  • Material : Aluminium
  • Maximum Air Pressure (bar) : 8.6
  • Maximum Air Pressure (psi) : 125
  • Maximum Cycle Rate (cpm) : 280
  • Maximum Flow Rate (l/min) : 189
  • Maximum Fluid Pressure (bar) : 8.6
  • Maximum Fluid Pressure (psi) : 125
  • Maximum Operating Temperature (°C) : 66
  • Maximum Solid Size (mm) : 3.175
  • Model : Husky
  • Power Source : Air
  • Seat Material : Polyester Elastomer
  • Series : 1050
  • Standards Met : ATEX, CE
  • Type : Pneumatic Diaphragm Pump
  • Wetted Material : Aluminium, Polyester Elastomer, Acetal, TPE
652046

652046

Husky 3300 (ANSI/DIN/NPT) AL Pump, AL Centre Section with BN Seals, GE Seats, GE Balls & GE Diaphragm

Specification :

  • Air Exhaust Port Size (in) : 1
  • Air Exhaust Port Thread Gender : Female
  • Air Exhaust Port Thread Type : NPT
  • Air Inlet Size (in) : 3/4
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Application : Industrial
  • Ball Material : G.E.T. (Graco Engineered Thermoplastic)
  • Centre Section Material : Aluminium
  • Compatible Material : Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Waste water Transfer
  • Connection Type : Centre Flange ANSI/DIN, Threaded
  • Diaphragm Compatible Material : G.E.T. (Graco Engineered Thermoplastic)
  • Diaphragm Material : G.E.T. (Graco Engineered Thermoplastic)
  • Fluid Inlet Size (in) : 3
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 3
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • Fluid Section Material : Aluminium
  • Manifold Configuration : Centre Port
  • Manifold O-Ring Material : Buna-N
  • Material : Aluminium
  • Maximum Air Pressure (bar) : 8.6
  • Maximum Air Pressure (psi) : 125
  • Maximum Cycle Rate (cpm) : 103
  • Maximum Flow Rate (l/min) : 1136
  • Maximum Fluid Pressure (bar) : 8.6
  • Maximum Fluid Pressure (psi) : 125
  • Maximum Operating Temperature (°C) : 66
  • Maximum Solid Size (mm) : 12.7
  • Minimum Operating Temperature (°C) : 0
  • Minimum Storage Temperature (°C) : 0
  • Model : Husky
  • Power Source : Air
  • Seat Material : G.E.T. (Graco Engineered Thermoplastic)
  • Series : 3300
  • Standards Met : ATEX, CE
  • Type : Pneumatic Diaphragm Pump
  • Wetted Material : Aluminium, Geolast, Buna-N

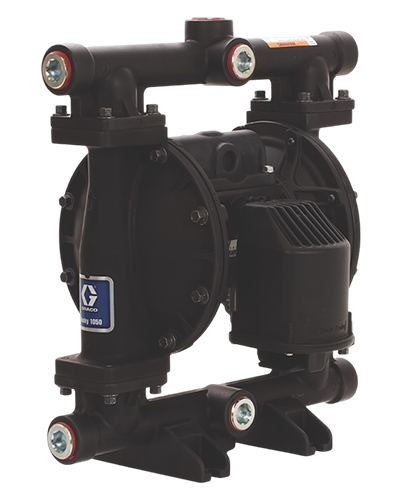

647018

647018

Husky 1050 AL 25.4 mm (1 in.) NPT Pump, AL Centre Section, SS Seats, SS Balls & PTFE Diaphragm

Specification :

  • Air Exhaust Port Size (in) : 3/4
  • Air Exhaust Port Thread Gender : Female
  • Air Exhaust Port Thread Type : NPT
  • Air Inlet Size (in) : 1/2
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Application : Industrial
  • Ball Material : 316 Stainless Steel
  • Centre Section Material : Aluminium
  • Compatible Material : Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Waste water Transfer
  • Connection Type : Threaded
  • Diaphragm Compatible Material : PTFE
  • Diaphragm Material : PTFE/EPDM 2-Piece
  • Fluid Inlet Size (in) : 1
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 1
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • Fluid Section Material : Aluminium
  • Manifold Configuration : Centre Port, End Port
  • Manifold O-Ring Material : PTFE
  • Material : Aluminium
  • Maximum Air Pressure (bar) : 8.6
  • Maximum Air Pressure (psi) : 125
  • Maximum Cycle Rate (cpm) : 280
  • Maximum Flow Rate (l/min) : 189
  • Maximum Fluid Pressure (bar) : 8.6
  • Maximum Fluid Pressure (psi) : 125
  • Maximum Operating Temperature (°C) : 104
  • Maximum Solid Size (mm) : 3.175
  • Model : Husky
  • Power Source : Air
  • Seat Material : Stainless Steel
  • Series : 1050
  • Standards Met : ATEX, CE
  • Type : Pneumatic Diaphragm Pump
  • Wetted Material : Aluminium, Stainless Steel, PTFE/EPDM
GRACO
YASKAWA
MEIJIFLEX
ELECTRON
