E-Flo iQ Metering & Dispensing Systems

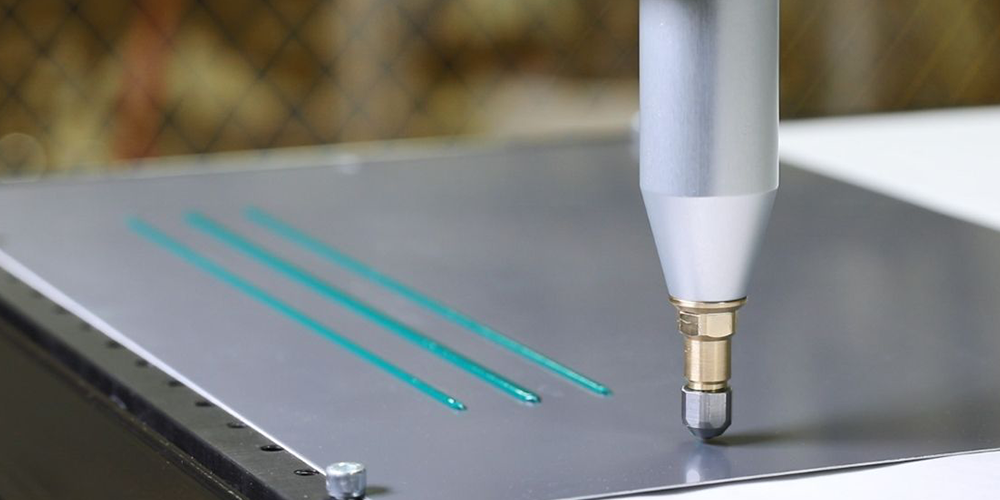

The new E-Flo iQ system is a single-component metering and dispensing solution that greatly simplifies robotic application of sealants and adhesives.
DOWNLOAD BROCHURE

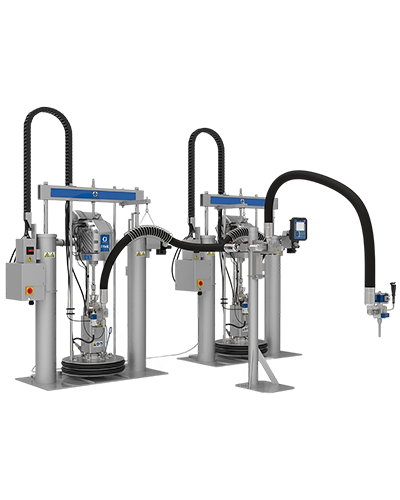

26B560
Tandem E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 55 Gal., D200s, two 20 ft hoses, 20 ft hose (WIP)
Specification :
- Air Inlet Size (in) : 1
- Ambient/Warm Melt/Hot Melt : Warm Melt
- Applicator Type : Rotating Ball/Seat
- Configuration : Tandem
- Construction : 319 Cast Aluminum, EPDM, Zinc-Plated Carbon Steel, 316 Stainless Steel, 17-4 Stainless Steel
- Container Size : Drum
- Fluid Outlet Size (in) : 1.0
- Fluid Outlet Thread Gender : Female
- Fluid Outlet Thread Type : NPT
- Gateway : EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface
- Input Cycle Rate (Hz) : 50/60
- Material Container Volume (l) : 200
- Maximum Air Inlet Pressure (bar) : 9
- Maximum Air Inlet Pressure (psi) : 125
- Maximum Ambient Temperature (°C) : 49
- Maximum Flow Rate (L/min) : 5.0
- Maximum Flow Rate (cc/min) : 5000
- Maximum Fluid Temperature (°C) : 70
- Maximum Fluid Viscosity (cP) : 3000000
- Maximum Fluid Working Pressure (bar) : 240
- Maximum Fluid Working Pressure (psi) : 3500
- Maximum Working Pressure (kPa) : 28000
- Maximum Working Pressure (psi) : 4000
- Minimum Ambient Temperature (°C) : 0
- Minimum Flow Rate (L/min) : 0.01
- Minimum Flow Rate (cc/min) : 10
- Minimum Fluid Viscosity (cP) : 100000
- Minimum Voltage (V ac) : 200
- Phase : 1, 3
- Power Type : Electric, Pneumatic
- Sound Pressure Level (dB(A)) : < 70
- Type : Metering System

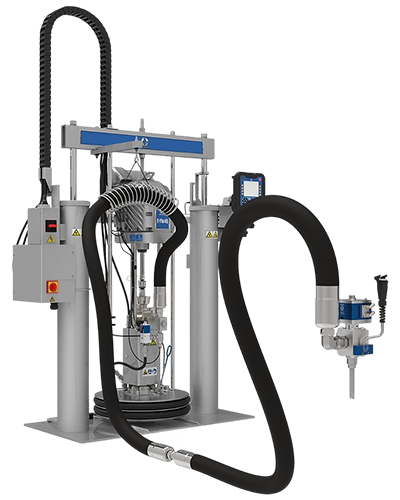

26B544
Single E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 55 Gal., D200s, 15 ft hose
Specification :
- Air Inlet Size (in) : 1
- Ambient/Warm Melt/Hot Melt : Warm Melt
- Applicator Type : Rotating Ball/Seat
- Configuration : Single
- Construction : 319 Cast Aluminum, EPDM, Zinc-Plated Carbon Steel, 316 Stainless Steel, 17-4 Stainless Steel
- Container Size : Drum
- Fluid Outlet Size (in) : 1.0
- Fluid Outlet Thread Gender : Female
- Fluid Outlet Thread Type : NPT
- Gateway : EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface
- Input Cycle Rate (Hz) : 50/60
- Material Container Volume (l) : 200
- Maximum Air Inlet Pressure (bar) : 9
- Maximum Air Inlet Pressure (psi) : 125
- Maximum Ambient Temperature (°C) : 49
- Maximum Flow Rate (L/min) : 5.0
- Maximum Flow Rate (cc/min) : 5000
- Maximum Fluid Temperature (°C) : 70
- Maximum Fluid Viscosity (cP) : 3000000
- Maximum Fluid Working Pressure (bar) : 240
- Maximum Fluid Working Pressure (psi) : 3500
- Maximum Working Pressure (kPa) : 28000
- Maximum Working Pressure (psi) : 4000
- Minimum Ambient Temperature (°C) : 0
- Minimum Flow Rate (L/min) : 0.01
- Minimum Flow Rate (cc/min) : 10
- Minimum Fluid Viscosity (cP) : 100000
- Minimum Voltage (V ac) : 200
- Phase : 1, 3
- Power Type : Electric, Pneumatic
- Sound Pressure Level (dB(A)) : < 70
- Type : Metering System
