InvisiPac melt-on-demand adhesive

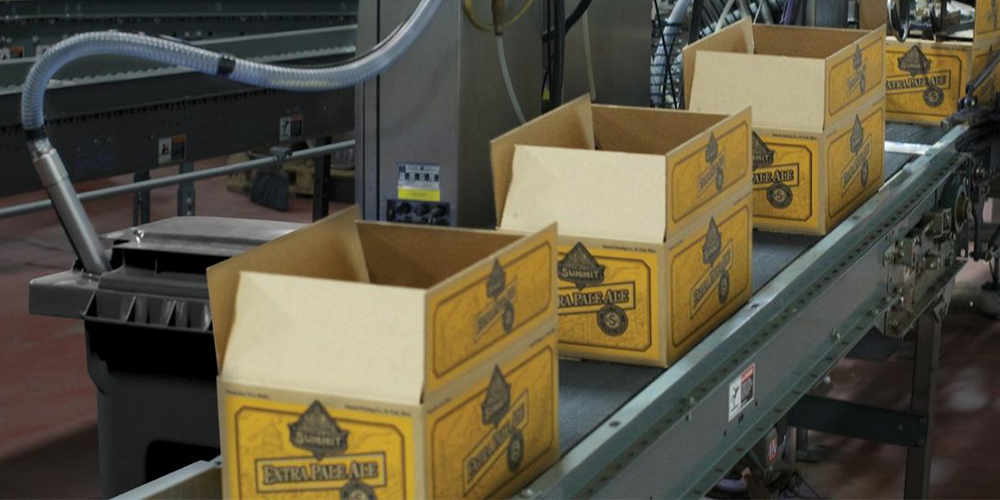

Eliminate adhesive char and advance productivity with InvisiPac melt-on-demand adhesive dispense for case and carton sealing. Tank-Free™ hot melt delivery outperforms tank and tankless melters at any speed, making end-of-line packaging more cost-effective, faster, and safer.
DOWNLOAD BROCHURE

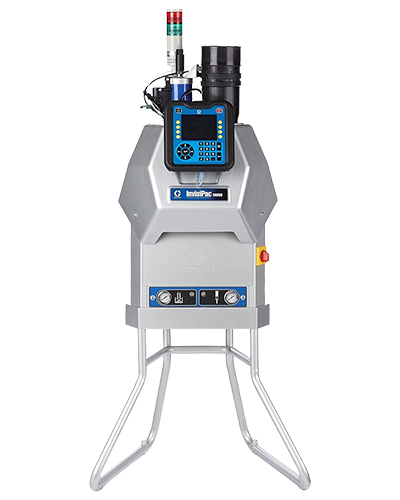

24T918
InvisiPac HM50 Hot Melt Delivery System without Pattern Controller, 2 Channel, 200-240V 1P/3P, 350-415V 3P+ Neutral
Specification :
- Air Inlet Size (in) : 1/4
- Air Inlet Thread Gender : Female
- Air Inlet Thread Type : NPT
- Ambient/Warm Melt/Hot Melt : Hot Melt
- Application : Bonding
- Applicator Type : Automatic
- Channels : 2
- Component Type : Single Component
- Footprint (in) : 22.3 x 18.3 x 35.8
- Frequency (Hz) : 50/60
- Gun Activation : Automatic
- Maximum Air Inlet Pressure (bar) : 7
- Maximum Air Inlet Pressure (psi) : 100
- Maximum Flow Rate (kg/hr) : 59
- Maximum Fluid Temperature (°C) : 204
- Maximum Hose Length (m) : 9.14
- Maximum Working Pressure (bar) : 83
- Maximum Working Pressure (psi) : 1200
- Melt Rate (kg/hr) : 22.6
- Model : InvisiPac
- Overall Depth (mm) : 465
- Overall Height (mm) : 909
- Overall Width (mm) : 566
- Pattern Controller : No
- Power Source : Electric
- Power Type : Electric
- Pump : Pneumatic piston, 12:1
- Series : HM50
- Time to Temperature : Less than 15 minutes
- Transformer : No
- Type : Dispensing System
- Voltage (V AC) : 200-240, 350-415
- Weight (kg) : 48
- Wetted Material : Aluminium, PTFE, Stainless Steel, Brass, Chrome, Zinc Plating, Carbon Steel, Carbide, Chemically Resistant O-Rings
