GRACO

E-Flo DCi Electric Paint Circulation Pumps

Direct current (DC) electric piston pumps with intelligent (i) control supply high volume liquid finishing applications. With a 145 to 1,000 cc volume per cycle range, the supply pump’s 2-ball lowers achieve 6:1 to 46:1 equivalent pressure ratios.

DOWNLOAD BROCHURE

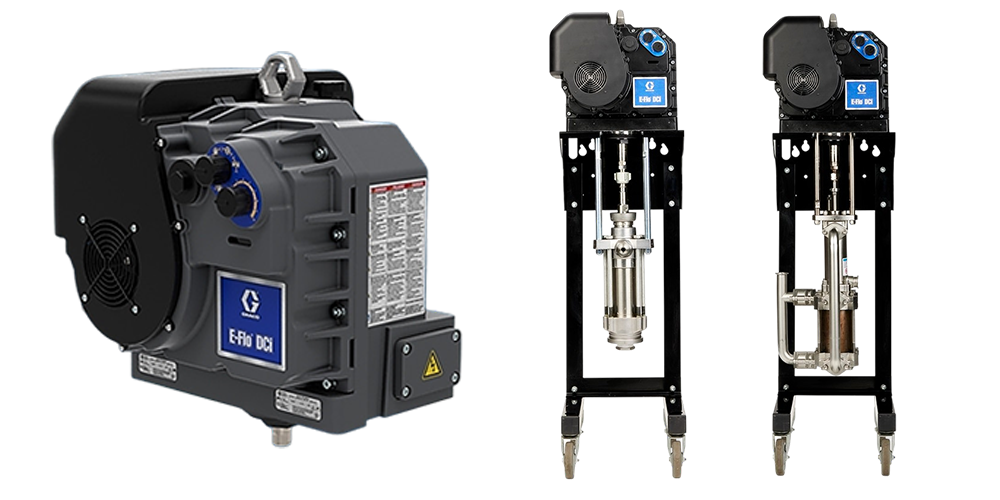

E-Flo-DCi

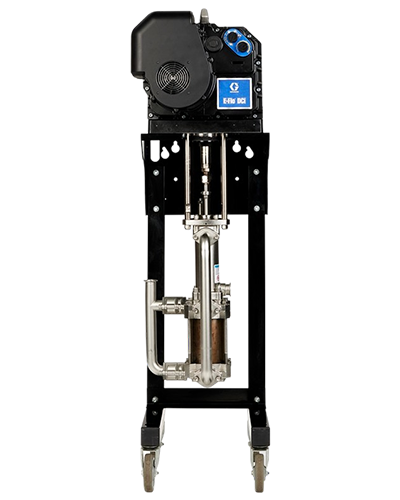

YD3341

YD3341

E-Flo DCi 4-Ball Electric Pump, 4000cc, 3.7 kW (5 HP), 380-480 VAC 3 Phase, SST Ultralife Lower, Tri-Clamp, Stand.
Direct current (DC) circulation pump with intelligent (i) control drives efficiency and sustainability in high volume industrial paint systems. The 4-ball lower’s 4000 cc configuration powers maximum continuous flow rate.

Specification :

  • Application : Circulation
  • Compatible Material : Solvent-borne, Xirallic, Metallics, Varnish, CARC, Water-borne
  • Cycles Per Gallon : 0.95
  • Fluid Inlet Size (in) : 1.5
  • Fluid Inlet Thread Type : Sanitary Quick Clamp
  • Fluid Outlet Size (in) : 1.5
  • Fluid Outlet Thread Type : Sanitary Quick Clamp
  • Fluid Section Type : Sealed 4-Ball
  • Includes : Basic Controls, Floor Stand
  • Input Voltage (V AC) : 380 - 480
  • Lower Type : Sealed 4-Ball
  • Material : Stainless Steel
  • Maximum Continuous Cycle Rate (cpm) : 20
  • Maximum Flow Rate (l/min) : 80
  • Maximum Input Amperage (A) : 20
  • Maximum Operating Temperature (°C) : 40
  • Maximum Working Pressure (bar) : 20.7
  • Maximum Working Pressure (psi) : 300
  • Minimum Operating Temperature (°C) : 0
  • Model : E-Flo
  • Motor Type : AC
  • Mount Type : Wall or Stand Mount
  • Output Per Cycle (cm³) : 4000
  • Portable : Non-Portable
  • Series : Dci 4-Ball
  • Type : Electric Piston Pump
YB4491

YB4491

E-Flo DCi 4-Ball Electric Pump, 3000cc, 3.7 kW (5 HP), 380-480 VAC 3 Phase, SST Ultralife Lower, Tri-Clamp, SiNi, Stand.
Direct current (DC) circulation pump with intelligent (i) control drives efficiency and sustainability in high volume industrial paint systems. The 4-ball lower’s 3000 cc configuration powers maximum continuous flow rate.

Specification :

  • Application : Circulation
  • Compatible Material : Solvent-borne, Xirallic, Metallics, Varnish, CARC, Water-borne
  • Cycles Per Gallon : 1.3
  • Fluid Inlet Size (in) : 1.5
  • Fluid Inlet Thread Type : Tri-Clamp
  • Fluid Outlet Size (in) : 1.5
  • Fluid Outlet Thread Type : Tri-Clamp
  • Fluid Section Type : Sealed 4-Ball
  • Includes : Basic Controls
  • Lower Type : Sealed with SiNi
  • Material : Stainless Steel
  • Maximum Continuous Cycle Rate (cpm) : 20
  • Maximum Flow Rate (l/min) : 60
  • Maximum Input Amperage (A) : 20
  • Maximum Operating Temperature (°C) : 40
  • Maximum Working Pressure (bar) : 28
  • Maximum Working Pressure (psi) : 400
  • Minimum Operating Temperature (°C) : 0
  • Model : E-Flo
  • Motor Type : AC
  • Mount Type : Wall or Stand Mount
  • Output Per Cycle (cm³) : 3000
  • Phase : 3
  • Portable : Non-Portable
  • Series : Dci 4-Ball
  • Type : Electric Piston Pump
  • Voltage (V) : 380-480 VAC
  • Weight (kg) : 116
YB3541

YB3541

E-Flo DCi 4-Ball Electric Pump, 2000cc, 2.2 kW (3 HP), 380-480 VAC 3 Phase, SST Ultralife Lower, Tri-Clamp, Stand.
Direct current (DC) circulation pump with intelligent (i) control drives efficiency and sustainability in high volume industrial paint systems. The 4-ball lower’s 2000 cc configuration powers maximum continuous flow rate.

Specification :

  • Application : Circulation
  • Compatible Material : Solvent-borne, Xirallic, Metallics, Varnish, CARC, Water-borne
  • Cycles Per Gallon : 1.9
  • Fluid Inlet Size (in) : 1.5
  • Fluid Inlet Thread Type : Sanitary Quick Clamp
  • Fluid Outlet Size (in) : 1.5
  • Fluid Outlet Thread Type : Sanitary Quick Clamp
  • Fluid Section Type : Sealed 4-Ball
  • Includes : Basic Controls, Floor Stand
  • Input Voltage (V AC) : 380 - 480
  • Lower Type : Sealed 4-Ball
  • Material : Stainless Steel
  • Maximum Continuous Cycle Rate (cpm) : 20
  • Maximum Flow Rate (l/min) : 40
  • Maximum Input Amperage (A) : 20
  • Maximum Operating Temperature (°C) : 40
  • Maximum Working Pressure (bar) : 24
  • Maximum Working Pressure (psi) : 350
  • Minimum Operating Temperature (°C) : 0
  • Model : E-Flo
  • Motor Type : AC
  • Output Per Cycle (cm³) : 2000
  • Portable : Non-Portable
  • Series : Dci 4-Ball
  • Type : Electric Piston Pump

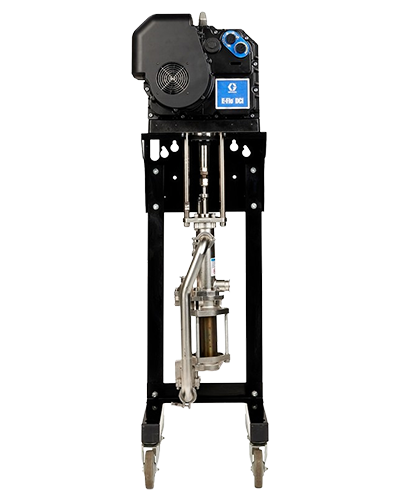

YD4581

YD4581

E-Flo DCi 4-Ball Electric Pump, 1500cc, 2.2 kW (3 HP), 380-480 VAC 3 Phase, SST Chrome Lower, Tri-Clamp, Stand.
Direct current (DC) circulation pump with intelligent (i) control drives efficiency and sustainability in high volume industrial paint systems. The 4-ball lower’s 1500 cc configuration powers maximum continuous flow rate.

Specification :

  • Application : Circulation
  • Compatible Material : Solvent-borne, Xirallic, Metallics, Varnish, CARC, Water-borne
  • Cycles Per Gallon : 2.5
  • Fluid Inlet Size (in) : 1.5
  • Fluid Inlet Thread Type : Sanitary Quick Clamp
  • Fluid Outlet Size (in) : 1.5
  • Fluid Outlet Thread Type : Sanitary Quick Clamp
  • Fluid Section Type : Sealed 4-Ball
  • Includes : Basic Controls, Floor Stand
  • Input Voltage (V AC) : 380 - 480
  • Lower Type : Sealed 4-Ball
  • Material : Stainless Steel
  • Maximum Continuous Cycle Rate (cpm) : 20
  • Maximum Flow Rate (l/min) : 98
  • Maximum Input Amperage (A) : 20
  • Maximum Operating Temperature (°C) : 40
  • Maximum Working Pressure (bar) : 31
  • Maximum Working Pressure (psi) : 450
  • Minimum Operating Temperature (°C) : 0
  • Model : E-Flo
  • Motor Type : AC
  • Output Per Cycle (cm³) : 1500
  • Portable : Non-Portable
  • Series : Dci 4-Ball
  • Type : Electric Piston Pump

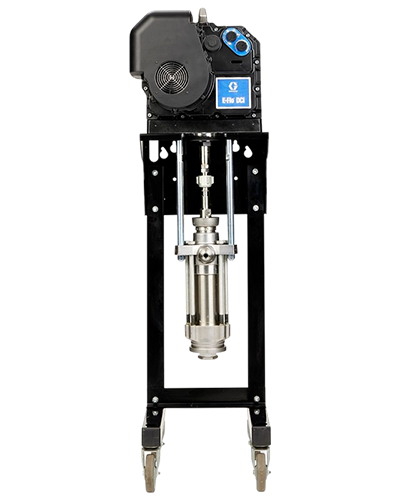

Y12BD1

Y12BD1

E-Flo DCi 2-Ball Electric Pump, 12:1, 580cc, 2.2 kW (3 HP), 380-480 VAC 3 Phase, Carbon Steel Construction, Basic Controls, Stand Mount.
Direct current (DC) supply pump with intelligent (i) control has a 580 cc volume per cycle range. The 2-ball lower attains a 12:1 equivalent pressure ratio.

Specification :

  • Application : Supply
  • Compatible Material : Solvent-borne, High Solids, Xirallic, CARC, Metallics
  • Fluid Inlet Size (in) : 2
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 1.5
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • Fluid Section Type : 2-Ball
  • Includes : Basic Controls, Floor Stand
  • Input Voltage (V AC) : 380 - 480
  • Material : Carbon Steel
  • Maximum Continuous Cycle Rate (cpm) : 20
  • Maximum Flow Rate (l/min) : 11.7
  • Maximum Input Amperage (A) : 20
  • Maximum Operating Temperature (°C) : 40
  • Maximum Working Pressure (bar) : 17259
  • Maximum Working Pressure (psi) : 1190
  • Minimum Operating Temperature (°C) : 0
  • Model : E-Flo
  • Motor Type : BLDC
  • Portable : Non-Portable
  • Series : DCi 2-Ball
  • Type : Electric Piston Pump
Y10BK0

Y10BK0

E-Flo DCi 2-Ball Electric Pump, 10:1, 1000cc, 3.7 kW (5 HP), 380-480 VAC 3 Phase, Carbon Steel Construction, Basic Controls, No Stand.
Direct current (DC) supply pump with intelligent (i) control has a 1000 cc volume per cycle range. The 2-ball lower attains a 10:1 equivalent pressure ratio.

Specification :

  • Application : Supply
  • Compatible Material : Solvent-borne, High Solids, Xirallic, CARC, Metallics
  • Fluid Inlet Size (in) : 2
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 1.5
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • Fluid Section Type : 2-Ball
  • Includes : Basic Controls, No Stand
  • Input Voltage (V AC) : 380 - 480
  • Material : Carbon Steel
  • Maximum Continuous Cycle Rate (cpm) : 20
  • Maximum Flow Rate (l/min) : 20
  • Maximum Input Amperage (A) : 20
  • Maximum Operating Temperature (°C) : 40
  • Maximum Working Pressure (bar) : 17259
  • Maximum Working Pressure (psi) : 1190
  • Minimum Operating Temperature (°C) : 0
  • Model : E-Flo
  • Motor Type : BLDC
  • Portable : Non-Portable
  • Series : DCi 2-Ball
  • Type : Electric Piston Pump
