Promix
DOWNLOAD BROCHURE
24F111

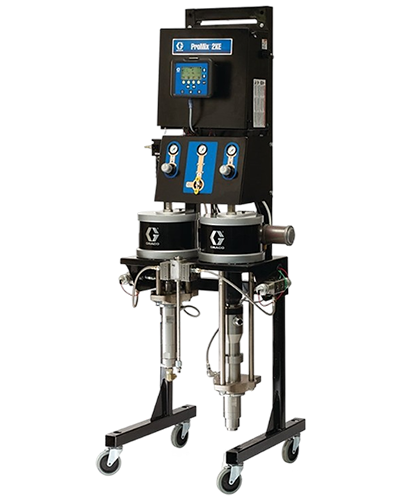

ProMix 2KE Proportioner, air, 30:1 Air Assist Merkur pumps, USB reporting, for hazardous location
Specification :
- Air Inlet Size (in) : 3/8 Female NPT
- Amperage (A) : 2
- Applicator Type : Manual Air-Assist
- Component Type : Two Component
- Construction : Perfluoroelastomer, PTFE, Stainless Steel, Tungsten Carbide
- Flush Type : Solvent
- Frequency (Hz) : 50/60
- Gun Activation : Manual
- Includes : Air Motor, A-Lower, B-Lower, A-Tie Rod, B-Tie Rod, Lower Adapter, TSL Reservoir
- Material Type : Two Component
- Maximum Air Inlet Pressure (bar) : 6.9
- Maximum Air Inlet Pressure (psi) : 100
- Maximum Fluid Viscosity (cP) : 5000
- Maximum Mix Ratio : 30:1
- Maximum Number of Colors : Up to 3
- Maximum Working Pressure (bar) : 206
- Maximum Working Pressure (psi) : 3000
- Measuring Type : Pump
- Minimum Fluid Viscosity (cP) : 20
- Minimum Mix Ratio : 0.1:1
- Mix Accuracy (%) : 1
- Model : ProMix
- Number of Catalysts : 1
- Number of Color Valves : N/A
- Number of Colors : 1
- Number of Resin Colors : 1
- Overall Depth (mm) : 376
- Overall Height (mm) : 917
- Overall Width (mm) : 511
- Power Source : Air
- Proportioning Type : Manual Electronic
- Pump Ratio : 30:1
- Pump Type : Air-Assisted
- Series : 2KE
- Sound Power Level (dB(A)) : 85
- Sound Pressure Level (dB(A)) : 70
- Type : Proportioning System
MD1603

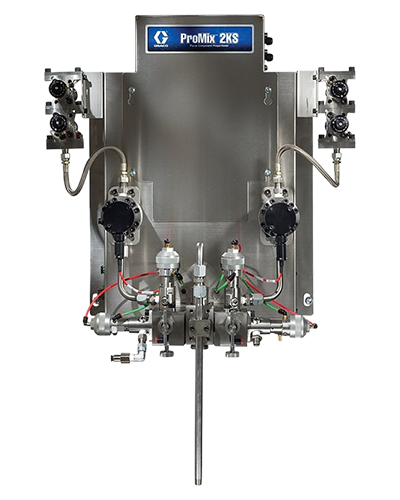

ProMix 2KS Manual Wall Panel System, EasyKey, G3000 A & B Meter, 4 Colors HP, Single Catalyst, 1 Air Flow Switch with 1 Gun Flush Box
Specification :
- Air Inlet Size (in) : 3/8 Female NPT
- Amperage (A) : 2
- Applicator Type : Manual
- Component Type : Two Component
- Construction : Perfluoroelastomer, PTFE, Stainless Steel, Tungsten Carbide
- Fluid Inlet Size (in) : 1/4 Female NPT
- Fluid Outlet Size (in) : 1/4 Female NPT
- Flush Type : Air/Solvent
- Frequency (Hz) : 50/60
- Gun Activation : Manual
- Material Type : Two Component
- Maximum Flow Rate (cc/min) : 3790
- Maximum Fluid Viscosity (cP) : 3000
- Maximum Mix Ratio : 50:1
- Maximum Number of Colors : Up to 12
- Maximum Working Pressure (bar) : 275.8
- Maximum Working Pressure (psi) : 4000
- Measuring Type : Meter
- Meter Type : G3000
- Minimum Flow Rate (cc/min) : 75
- Minimum Fluid Viscosity (cP) : 20
- Minimum Mix Ratio : 0.1:1
- Mix Accuracy (%) : 1
- Model : ProMix
- Number of Catalysts : 1
- Number of Color Valves : 4 Valves
- Number of Colors : 4
- Number of Resin Colors : 4
- Power Source : Electric
- Proportioner Type : Manual
- Proportioning Type : Manual Electronic
- Series : 2KS
- Sound Power Level (dB(A)) : 85
- Sound Pressure Level (dB(A)) : 70
- Type : Proportioning System
