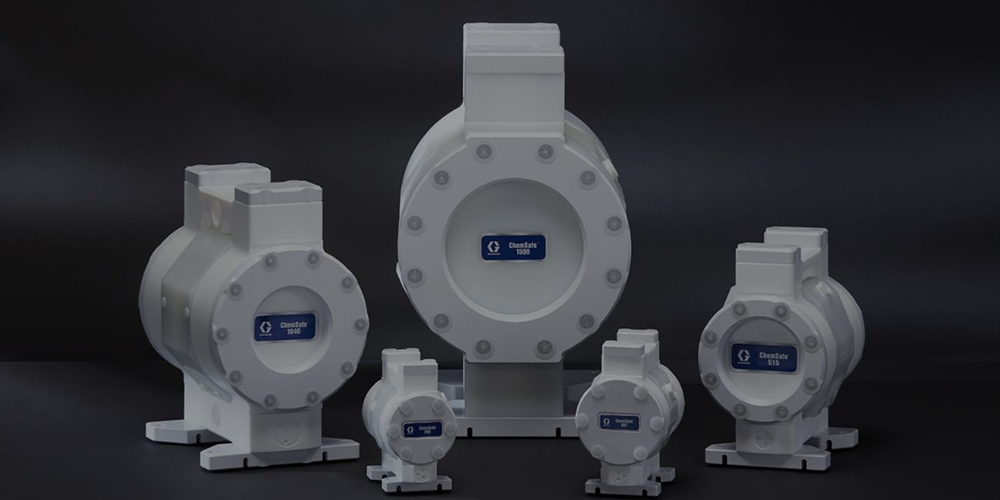

Chemsafe AODD Pump

Graco's ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. There's no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements. Plus they're dead-head capable and achieve high flow rates while minimizing air consumption and operational noise.

DOWNLOAD BROCHURE
Chemsafe
24X423

24X423

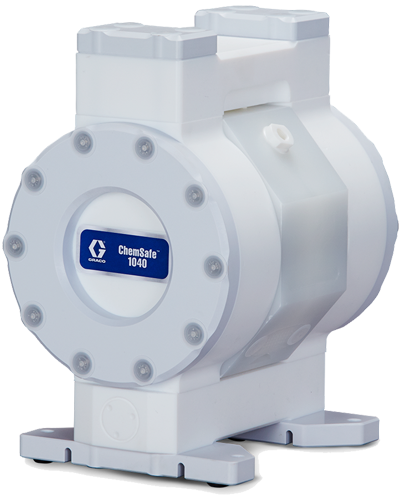

ChemSafe 1040 Air Operated Double Diaphragm Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port

Specification :

  • Air Inlet Size (in) : 1/4 Female NPT
  • Application : Industrial
  • Ball Material : PTFE
  • Center Section Material : Polypropylene
  • Compatible Material : Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink
  • Connection Type : Threaded
  • Diaphragm Compatible Material : PTFE
  • Diaphragm Material : PTFE Overmold
  • Fluid Inlet Size (in) : 1 Female NPT
  • Fluid Outlet Size (in) : 1 Female NPT
  • Fluid Section Material : PTFE
  • Manifold Configuration : Center Port
  • Manifold O-Ring Material : PTFE
  • Material : PTFE
  • Maximum Air Pressure (bar) : 7
  • Maximum Air Pressure (psi) : 100
  • Maximum Cycle Rate (CPM) : 260
  • Maximum Flow Rate (L/min) : 148
  • Maximum Fluid Pressure (bar) : 7
  • Maximum Fluid Pressure (psi) : 100
  • Maximum Operating Temperature (°C) : 100
  • Maximum Solid Size (mm) : 2030
  • Minimum Operating Temperature (°C) : 0
  • Minimum Storage Temperature (°C) : 0
  • Model : ChemSafe
  • Power Source : Air
  • Seat Material : PTFE
  • Series : 1040
  • Standards Met : CE
  • Type : Pneumatic Diaphragm Pump
