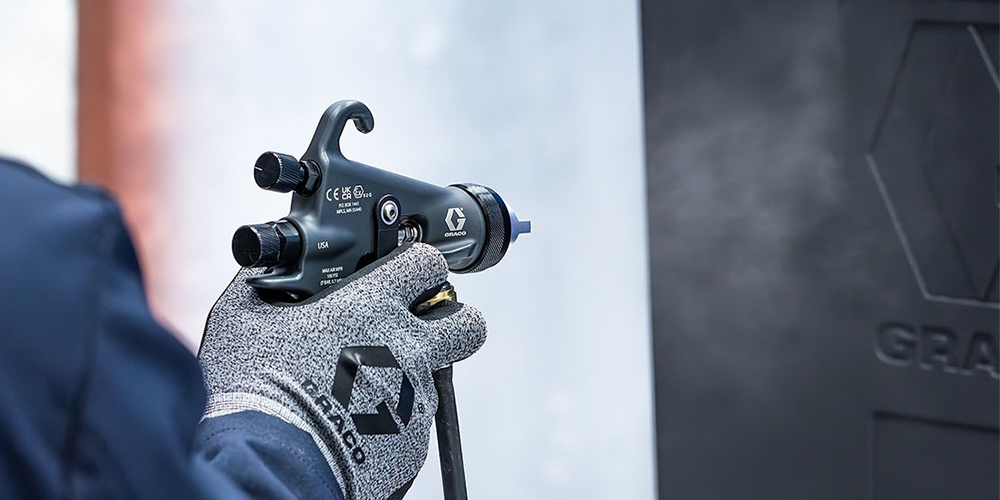

Stellair Air Spray Gun
Stellair Manual Air Spray Guns are designed for a wide variety of applications, delivering precision, efficiency, and quality finishes. With minimal overspray and smooth operation, they enhance productivity for every sprayer. A variety of air caps and models avaliable for a wide range of applications.
DOWNLOAD BROCHURE
2004146

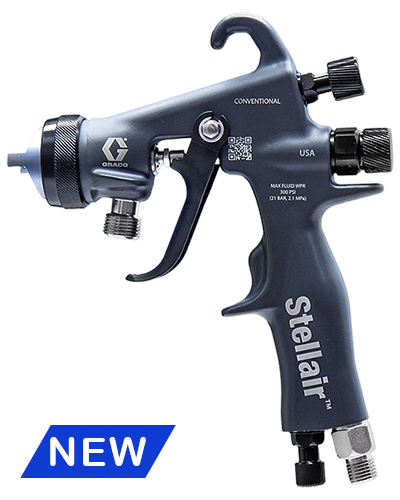

Stellair Air Spray Gun, Conventional, 0.030 in (0.8 mm), General Industry, PEEK Tip
Specification :
- Air Inlet Size (in) : 1/4
- Air Inlet Thread Type : NPSM
- Application : General Industry
- Applicator Type : Manual
- Compatible Material : CARC, Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne
- Feed Type : Pressure Feed
- Fluid Inlet Size (in) : 0.375
- Fluid Inlet Size (mm) : 9.52
- Fluid Inlet Thread Type : NPSM
- Fluid Orifice Size (mm) : 0.080
- Gun Activation : Manual
- Gun Type : Conventional Gun
- Includes : Air Cap, Needle Assembly, Nozzle
- Maximum Air Pressure (bar) : 7
- Maximum Air Pressure (psi) : 100
- Maximum Fluid Pressure (bar) : 21
- Maximum Fluid Pressure (psi) : 300
- Model : Stellair
- Needle Tip Material : PEEK
- Product Type : Spray Gun
- Series : Manual
- Spray Type : Air Spray
- Technology Type : Conventional
- Trigger Lock : Non-Locking
- Trigger Type : Two-Finger
- Type : Spray Gun
