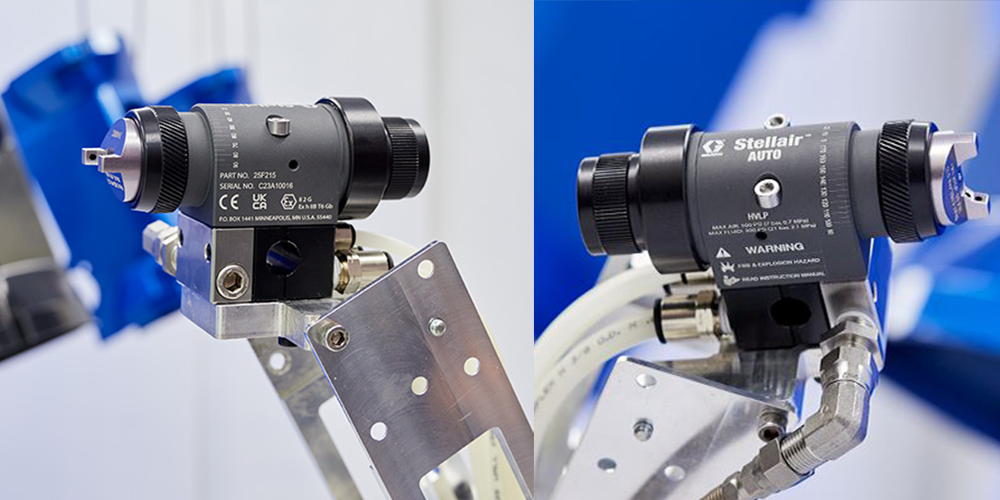

Stellair Automatic Air Spray Gun
Stellair Auto Air Spray Guns deliver high-performance finishing with a low-profile design for seamless integration into automated systems. Built for swift serviceability to maximize uptime.
DOWNLOAD BROCHURE

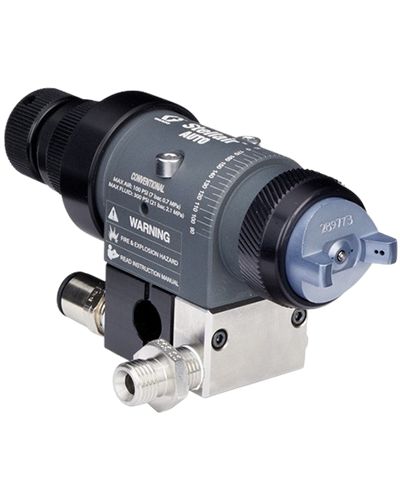

25F213
Stellair Automatic Air Spray Gun, Conventional, 0.055 in (1.4 mm) Nozzle for General Industry with fluid control knob with side inlet manifold (imperial).
Specification :
- Application : General Industry
- Applicator Type : Automatic
- Body Material : Metal
- Compatible Material : Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne
- Fluid Adjustment Knob : Clicking
- Fluid Orifice Size (mm) : 1.4
- Gun Model : Stellair
- Gun Series : Automatic
- Gun Type : Conventional Gun
- Gun Weight (g) : 430
- Manifold Type : Side Inlet
- Maximum Air Pressure (bar) : 7
- Maximum Air Pressure (psi) : 100
- Maximum Flow Rate (oz/min) : 18
- Maximum Fluid Temperature (°C) : 49
- Maximum Fluid Working Pressure (bar) : 21
- Maximum Fluid Working Pressure (psi) : 300
- Minimum Air Inlet Pressure (bar) : 3.4
- Minimum Air Inlet Pressure (psi) : 50
- Needle Tip Material : PEEK
- Nozzle Size (mm) : 1.4
- Overall Height (mm) : 75
- Overall Length (mm) : 150
- Overall Width (mm) : 90.2
- Sound Power Level (dB(A)) : 88.82
- Sound Pressure Level (dB(A)) : 78.91
- Type : Auto Gun
