GRACO

ProBell Rotary Automizer

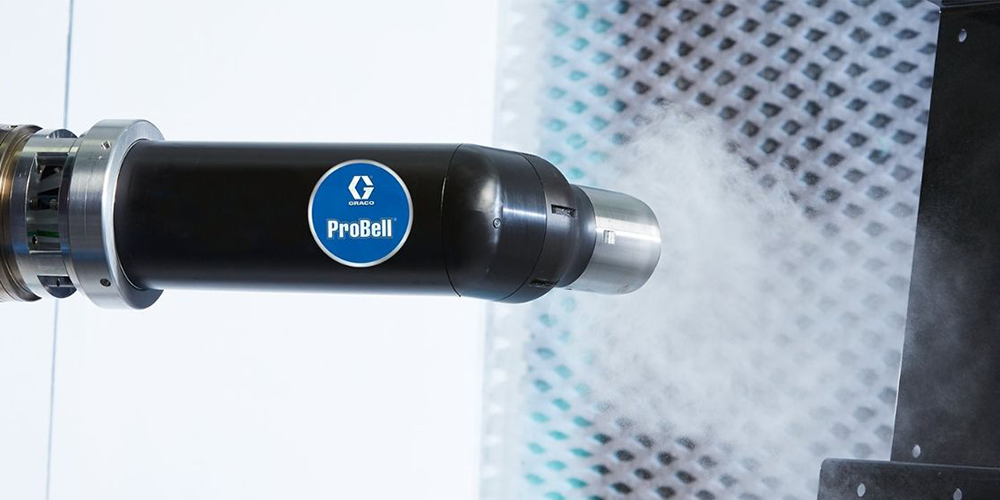

Easy to integrate, operate, and service, ProBell® brings convenience and high performance to any finishing application in any industry. The automatic rotary atomizer continually improves quality, transfer efficiency and cleanliness while spraying with robots, reciprocators or on a fixed mount.

DOWNLOAD BROCHURE
ProBell

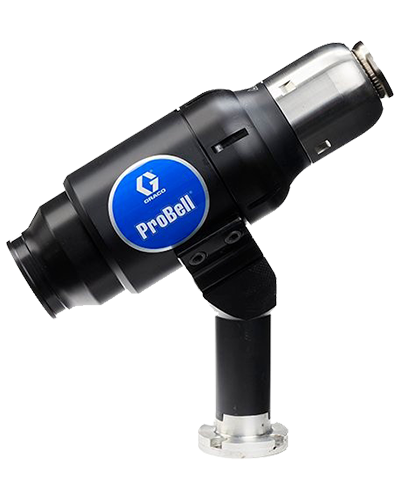

R5A161

R5A161

ProBell Applicator, Standard, Non-Electrostatic, 50 mm bell cup, 1.5 mm nozzle.

Specification :

  • Applicator Type : Automatic
  • Bell Cup Edge Type : Serrated
  • Bell Cup Material : Aluminum Standard
  • Bell Cup Size (in) : 2.0
  • Compatible Paint Type : Waterborne, Solventborne
  • For Use With : Standard Bell System
  • Gun Activation : Automatic
  • Gun Model : Non-Electrostatic
  • Gun Mount : Standard
  • Gun Type : Rotary Applicator, Non-Electrostatic
  • Maximum Air Pressure (bar) : 7.0
  • Maximum Air Pressure (psi) : 100
  • Maximum Fluid Pressure (bar) : 10.3
  • Maximum Fluid Pressure (psi) : 150
  • Maximum Turbine Speed (RPM) : 60000
  • Maximum Viscosity (cSt) : 150
  • Maximum Working Pressure (bar) : 10.3
  • Maximum Working Pressure (psi) : 150
  • Minimum Bearing Air Pressure (bar) : 5
  • Minimum Bearing Air Pressure (psi) : 70
  • Minimum Viscosity (cSt) : 30
  • Model : ProBell
  • Nozzle Size (mm) : 1.5
  • Output Voltage (kV) : 60
  • Spray Type : Rotary Bell, Electrostatic, Non-Electrostatic
  • Technology Type : Rotary Atomization
  • Type : Rotary Applicator
