E-Flo DC 4-Ball Electric Pumps
Graco's E-Flo DC 4-Ball Electric pumps are ideal for small to medium circulation systems with outputs up to 2,000 cc per cycle.
DOWNLOAD BROCHURE

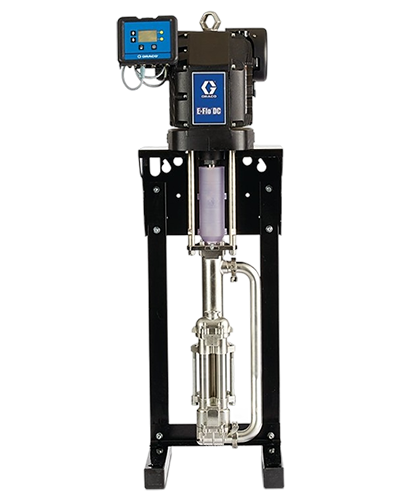

EC1B41
E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand
Specification :
- Construction : Stainless Steel, PTFE, Leather, Tungsten, Carbide, Fluoropolymer, UHMWPE
- Fluid Inlet Size (in) : 1.5
- Fluid Inlet Thread Gender : Female
- Fluid Inlet Thread Type : Tri-Clamp
- Fluid Inlet Type : Tri-Clamp
- Fluid Outlet Size (in) : 1.5
- Fluid Outlet Thread Gender : Female
- Fluid Outlet Thread Type : Tri-Clamp
- Fluid Section Type : 4-Ball, Sealed Bellows
- Includes : Advanced Control Input, Stand
- Maximum Continuous Cycle Rate (CPM) : 20
- Maximum Operating Temperature (°C) : 40
- Maximum Voltage (V ac) : 480
- Maximum Working Pressure (bar) : 26
- Maximum Working Pressure (psi) : 377
- Minimum Operating Temperature (°C) : 0
- Minimum Voltage (V ac) : 380
- Overall Depth (mm) : 505
- Overall Height (mm) : 1473
- Overall Width (mm) : 432
- Type : Electric Piston Pump
- Weight (kg) : 112
