GRACO

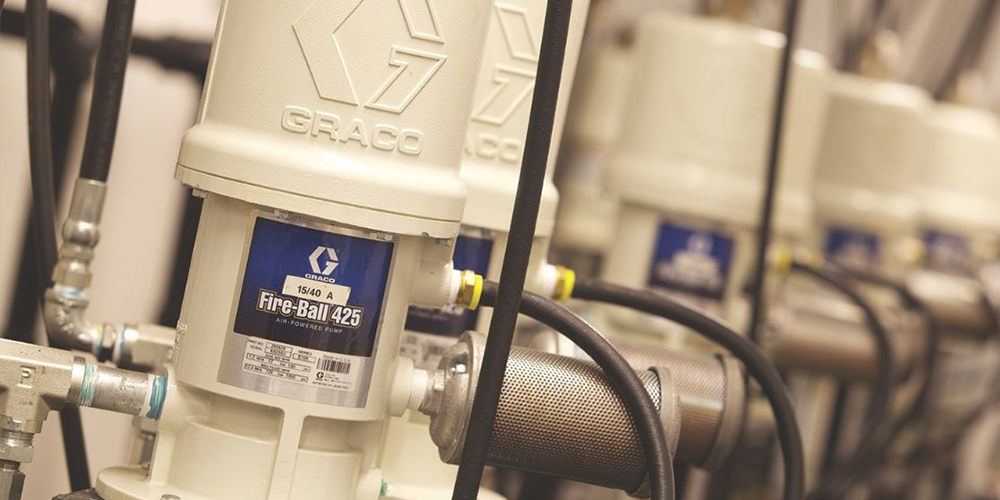

Fire-Ball Oil & Grease Pumps

Since 1956, Graco Fire-Ball® pumps and packages have been a mainstay in the lubrication marketplace for durability and long life. Designed for the toughest applications, the Fire-Ball brand repeatedly outperforms and outlasts the competition.

DOWNLOAD BROCHURE
Fire-Ball

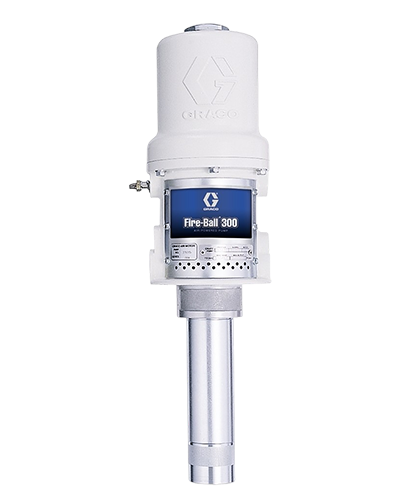

203876

203876

Fire-Ball® 300 Series 5:1 Universal Size Oil Pump

Specification :

  • Air Inlet Size (in) : 3/8
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Air Motor Effective Diameter (in) : 3
  • Application : Industrial
  • Compatible Material : Oil
  • Cycles Per Gallon : 30
  • Fluid Inlet Size (in) : 1-1/2
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 1/2
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • For Use With : Petroleum and synthetic-based oils (motor, gear and ATF)
  • Maximum Air Inlet Pressure (bar) : 12.41
  • Maximum Air Inlet Pressure (psi) : 180
  • Maximum Continuous Cycle Rate (cpm) : 70
  • Maximum Intermittent Cycle Rate (cpm) : 70
  • Maximum Working Pressure (bar) : 62
  • Maximum Working Pressure (psi) : 900
  • Model : Fire-Ball
  • Power Type : Pneumatic
  • Pump Ratio : 5:1
  • Series : 300
  • Sound Power Level (dB(A)) : 85.6
  • Sound Pressure Level (dB(A)) : 77.8
  • Type : Pneumatic Piston Pump
  • Weight (kg) : 0.7718
  • Wetted Material : Steel, Polyurethane, Aluminium, Buna-N

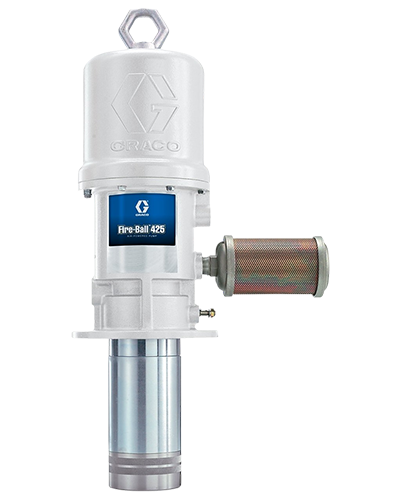

237526

237526

Fire-Ball® 425 Series 3:1 Universal Size Oil Pump

Specification :

  • Air Inlet Size (in) : 0.5
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Air Motor Effective Diameter (in) : 4.25
  • Application : Industrial
  • Compatible Material : Oil
  • Cycles Per Gallon : 6
  • Fluid Inlet Size (in) : 1-1/2
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 3/4
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • For Use With : Petroleum and synthetic-based oils (motor, gear and ATF)
  • Maximum Air Inlet Pressure (bar) : 12.41
  • Maximum Air Inlet Pressure (psi) : 180
  • Maximum Continuous Cycle Rate (cpm) : 66
  • Maximum Intermittent Cycle Rate (cpm) : 66
  • Maximum Working Pressure (bar) : 37
  • Maximum Working Pressure (psi) : 540
  • Model : Fire-Ball
  • Power Type : Pneumatic
  • Pump Ratio : 3:1
  • Series : 425
  • Sound Pressure Level (dB(A)) : 82
  • Type : Pneumatic Piston Pump
  • Weight (kg) : 2.0884
  • Wetted Material : Steel, Polyurethane, Aluminium, Nitrile

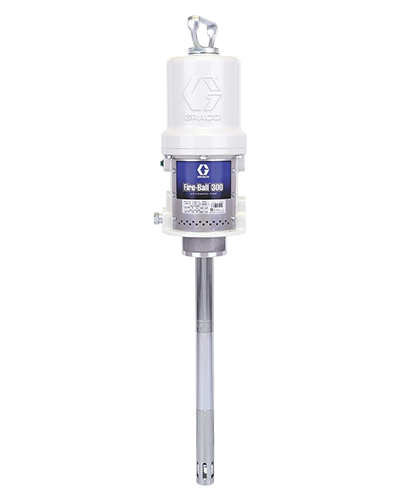

239877

239877

Fire-Ball® 300 Series 50:1 16 or 32 kg. Pail Grease Pump

Specification :

  • Air Inlet Size (in) : 3/8
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Air Motor Effective Diameter (in) : 3
  • Application : Industrial
  • Compatible Material : Grease
  • Construction : Steel, Brass, Aluminum, Acetal, Nitrile Rubber, Polyurethane
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Inlet Type : Slotted
  • Fluid Outlet Size (in) : 1/4
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • For Use With : Grease
  • Maximum Air Inlet Pressure (bar) : 9.65
  • Maximum Air Inlet Pressure (psi) : 140
  • Maximum Continuous Cycle Rate (CPM) : 76
  • Maximum Intermittent Cycle Rate (CPM) : 76
  • Maximum Working Pressure (MPa) : 58
  • Maximum Working Pressure (psi) : 8400
  • Model : Fire-Ball
  • Power Type : Pneumatic
  • Pump Ratio : 50:1
  • Series : 300
  • Sound Power Level (dB(A)) : 85.6
  • Sound Pressure Level (dB(A)) : 77.8
  • Type : Pneumatic Piston Pump
  • Weight (kg) : 0.9988

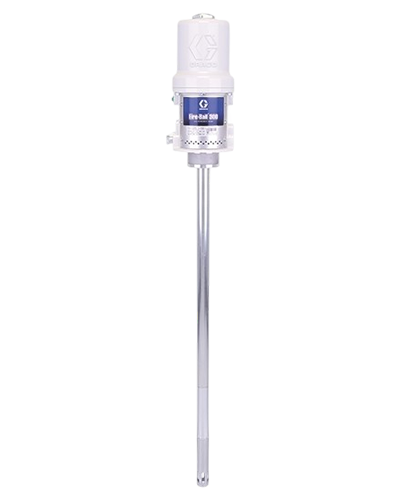

239888

239888

Fire-Ball® 300 Series 50:1 400 lb (180 kg). Grease Pump

Specification :

  • Air Inlet Size (in) : 3/8
  • Air Inlet Size (mm) : 9.525
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Air Motor Effective Diameter (in) : 3
  • Application : Industrial
  • Compatible Material : Grease
  • Construction : Steel, Brass, Aluminum, Acetal, Nitrile Rubber, Polyurethane
  • Cycles Per Gallon : 345
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Inlet Type : Slotted
  • Fluid Outlet Size (in) : 1/4
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • For Use With : Grease
  • Maximum Air Inlet Pressure (bar) : 9.65
  • Maximum Air Inlet Pressure (psi) : 140
  • Maximum Continuous Cycle Rate (CPM) : 76
  • Maximum Intermittent Cycle Rate (CPM) : 76
  • Maximum Working Pressure (bar) : 580
  • Maximum Working Pressure (psi) : 8400
  • Model : Fire-Ball
  • Power Type : Pneumatic
  • Pump Ratio : 50:1
  • Series : 300
  • Sound Power Level (dB(A)) : 85.6
  • Sound Pressure Level (dB(A)) : 77.8
  • Type : Pneumatic Piston Pump
  • Weight (kg) : 0.9988
