TRITON Air-operated Diaphragm

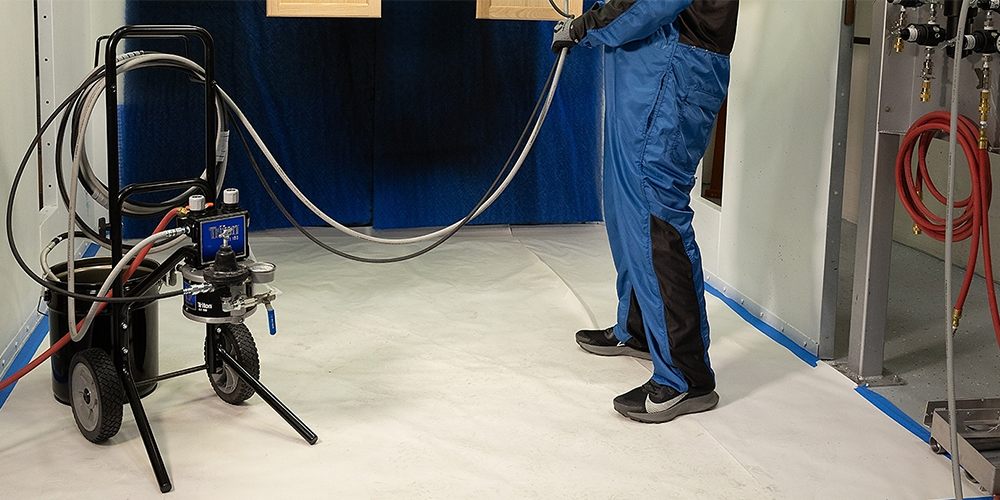

Graco's Triton Pump Package is durable, requires little maintenance, plus it delivers a consistent spray pattern and uniform film thickness.
DOWNLOAD BROCHURE

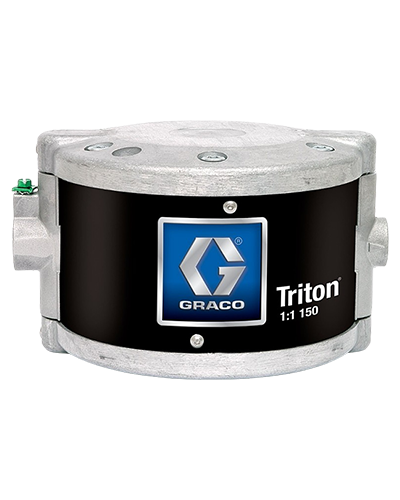

233500
Triton 308.
Triton Air-Operated Diaphragm Pump, Bare, Aluminium, NPT
Specification :
- Air Inlet Size (in) : 1/4
- Air Inlet Thread Type : NPT
- Application : Circulation
- Connection Type : Threaded
- Fluid Inlet Size (in) : 3/4
- Fluid Inlet Thread Type : NPT
- Fluid Outlet Size (in) : 3/8
- Fluid Outlet Thread Type : NPT
- Manifold Configuration : Centre Port
- Material : Aluminium
- Maximum Air Pressure (bar) : 8
- Maximum Air Pressure (psi) : 115
- Maximum Flow Rate (l/min) : 32
- Maximum Fluid Pressure (bar) : 8
- Maximum Fluid Pressure (psi) : 115
- Maximum Operating Temperature (°C) : 80
- Minimum Operating Temperature (°C) : 10
- Model : Triton
- Power Source : Air
- Pump Ratio : 1:1
- Series : 308
- Standards Met : ATEX, CE
- Type : Pneumatic Diaphragm Pump
- Wetted Material : Aluminium, Stainless Steel
233475
Triton Alum Spray Package, Stand, Suction, Air & Fluid Hoses, Stellair Conventional Gun .055 in (1.4 mm) Nozzle for Metal Applications
Specification :
- Compatible Material : CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers
- Feed Type : Suction Hose
- Fluid Inlet Size (in) : 3/4
- Fluid Inlet Thread Type : NPT
- Fluid Outlet Size (in) : 3/8
- Fluid Outlet Thread Type : NPT
- Gun Included : 1
- Gun Model : Stellair
- Gun Technology : Conventional
- Gun Type : Air Spray
- Includes : 25 ft Air Hose, 25 ft Fluid Hose, Applicator
- Maximum Air Inlet Pressure (bar) : 7
- Maximum Air Inlet Pressure (psi) : 100
- Maximum Flow Rate (L/min) : 32
- Maximum Working Pressure (bar) : 7
- Maximum Working Pressure (psi) : 100
- Model : Triton
- Mount Location : Stand Mount
- Mount Type : Stand Mount
- Power Source : Air
- Pressure Type : Low Pressure
- Product Type : Spray Package
- Pump Ratio : 1:1
- Pump Type : Pneumatic Diaphragm Pump
- Series : 308
- Spray Type : Air-Powered
- Sprayer Type : Air Spray
- Technology Type : Conventional
- Type : Air-Powered Sprayer
- Weight (kg) : 9

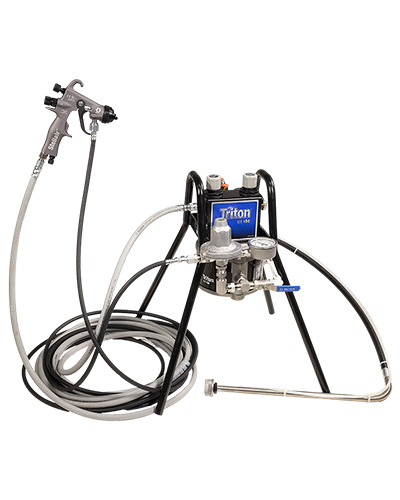

233473
Triton Aluminum Pump Package, stand mount with suction hose. Does not include applicator.
Specification :
- Compatible Material : CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers
- Feed Type : Suction Hose
- Fluid Inlet Size (in) : 3/4
- Fluid Inlet Thread Type : NPT
- Fluid Outlet Size (in) : 3/8
- Fluid Outlet Thread Type : NPT
- Gun Included : 0
- Gun Model : No Applicator
- Gun Technology : Bare Package
- Gun Type : No Applicator
- Includes : Suction Hose
- Maximum Air Inlet Pressure (bar) : 7
- Maximum Air Inlet Pressure (psi) : 100
- Maximum Flow Rate (L/min) : 32
- Maximum Working Pressure (bar) : 7
- Maximum Working Pressure (psi) : 100
- Model : Triton
- Mount Location : Stand Mount
- Mount Type : Stand Mount
- Power Source : Air
- Pressure Type : Low Pressure
- Product Type : Bare Package
- Pump Ratio : 1:1
- Pump Type : Pneumatic Diaphragm Pump
- Series : 308
- Spray Type : Air-Powered
- Sprayer Type : Air Spray
- Type : Air-Powered Sprayer
- Weight (kg) : 9
