GRACO

MERKUR Spray Packages

Get the precise pressure and output for all of your finishing applications. Merkur pumps and spray packages are available in a variety of models and configurations, such as air spray, air-assisted and airless.

DOWNLOAD BROCHURE
MERKUR

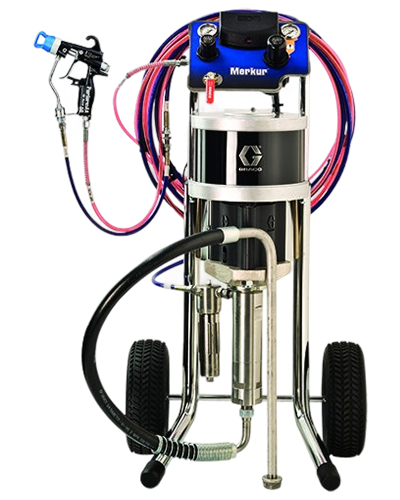

G30C67

G30C67

30:1 Merkur AA Package, 1.2 gpm (4.5 lpm) fluid flow, Cart Mount, PerformAA 50 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Specification :

  • Construction : Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon, Engineered Plastic, Fluoroelastomer
  • Convertible : Non-Convertible
  • Fluid Inlet Size (in) : 3/4
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 3/8
  • Fluid Outlet Thread Type : NPT
  • Gun Included : 1
  • Gun Model : PerformAA 50 Air Assist
  • Gun Technology : Air-Assisted
  • Gun Type : Air-Assisted
  • Hose Inlet Diameter (mm) : 5
  • Includes : Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter
  • Maximum Flow Rate (L/min) : 4.5
  • Maximum Hose Length (m) : 7.6
  • Maximum Working Pressure (bar) : 207
  • Maximum Working Pressure (psi) : 3000
  • Model : Merkur
  • Motor Type : Pneumatic
  • Mount Type : Cart Mount
  • Number of Guns : 1
  • Power Source : Air
  • Pressure Type : High Pressure
  • Product Type : Spray Package
  • Pump Ratio : 30:1
  • Pump Type : Pneumatic Piston Pump
  • Spray Type : Air-Assisted
  • Technology Type : Air-Assisted
  • Type : Air-Assisted Spray Package
  • Weight (kg) : 48.99

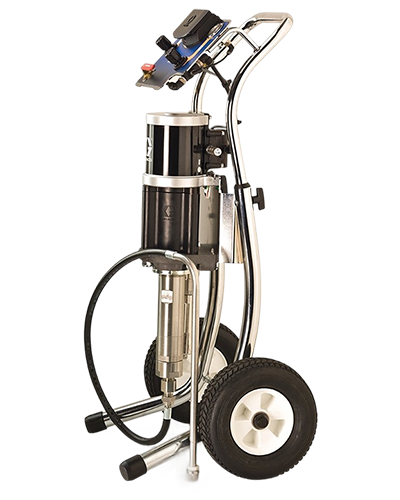

G30C55

G30C55

30:1 Merkur Airless Package, 1.2 gpm (4.5 lpm) fluid flow, Cart Mount, XTR5+ Gun, Pump Air Controls, Gun Fluid Hose, Fluid Filter

Specification :

  • Construction : Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Aluminum, Acetal, Polyethylene, Nylon, Polypropylene, Polyurethane, Solvent-Resistant O-Ring
  • Convertible : Non-Convertible
  • Fluid Inlet Size (in) : 3/4
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size (in) : 3/8
  • Fluid Outlet Thread Type : NPT
  • Gun Included : 1
  • Gun Model : XTR5+
  • Gun Technology : Airless
  • Gun Type : Airless
  • Hose Inlet Diameter (in) : 3/16
  • Includes : Pump Only Air Controls, Gun Hose, Suction Hose, Fluid Filter
  • Maximum Flow Rate (L/min) : 4.5
  • Maximum Hose Length (m) : 7.5
  • Maximum Working Pressure (bar) : 207
  • Maximum Working Pressure (psi) : 3000
  • Model : Merkur
  • Motor Type : Pneumatic
  • Mount Type : Cart Mount
  • Number of Guns : 1
  • Power Source : Air
  • Pressure Type : High Pressure
  • Product Type : Spray Package
  • Pump Ratio : 30:1
  • Pump Type : Pneumatic Piston Pump
  • Spray Type : Airless
  • Technology Type : Airless
  • Type : Airless Spray Package
  • Weight (kg) : 49
