HOSE REELS Industrial Hose Reels

Graco's family of heavy duty industrial hose reels are designed for applications from small shops to large car and truck dealerships, even construction equipment and fleet maintenance shops. We also engineer our retractable hose reels to handle common shop fluids: lubricating grease, petroleum- and synthetic-based oils, hydraulic fluids, transmission fluids, gear oils, air, water, windshield wash fluid and diesel exhaust fluids.

DOWNLOAD BROCHURE

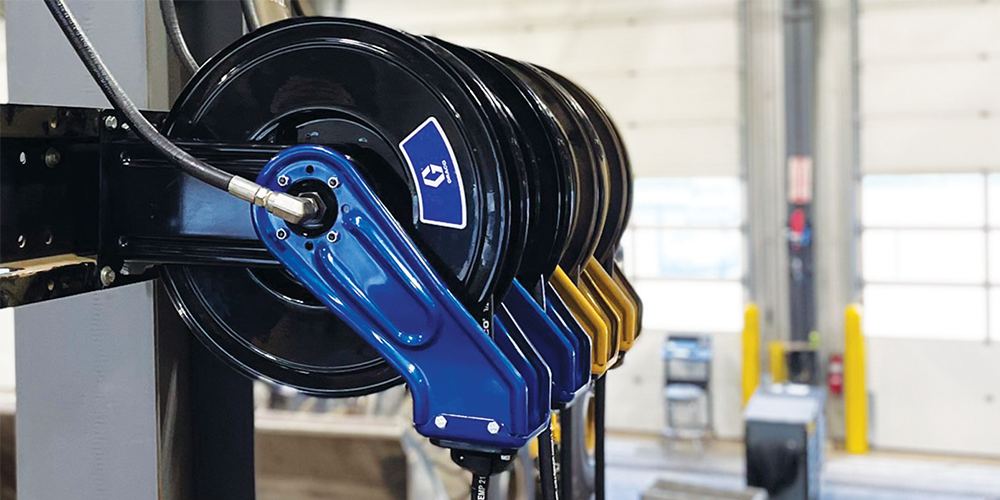

HOSE-REELS
24P320

24P320

XD40™, Oil, 1 in. (25 mm) Inlet, Bare Reel (1 in. X 50 ft. (25 mm X 15 m) Capacity), NPT, Truck/Bench Only, Metallic Blue

Specification :

  • Application : Oil
  • Colour : Metallic Blue
  • Frame Type : Box Frame
  • Hose Inside Diameter (in) : 1
  • Hose Length (m) : 15
  • Hose Reel Type : Bare Reel
  • Includes Hose : No
  • Inlet Size (in) : 1
  • Inlet Thread Type : NPT
  • Maximum Working Pressure (psi) : 2000
  • Model : XD
  • Mount Location : Truck Mount, Bench Mount
  • Outlet Size (in) : 1
  • Overall Height (mm) : 664
  • Overall Length (mm) : 671
  • Overall Width (mm) : 420
  • Recommended Environment : Indoor, Outdoor
  • Recommended Fluid Type : Oil
  • Reel Thread Type : NPT
  • Series : 40
  • Type : Spring-Rewind Reel
  • Bare Reel : 1
  • Wetted Parts : Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber

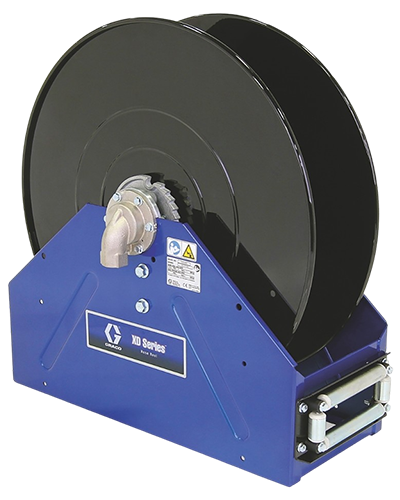

24P467

24P467

XD50™, Diesel Fuel, 1-1/2 in. (13 mm) Inlet, Bare Reel (1-1/2 in. X 50 ft. (13 mm X 15 m) Capacity), NPT, Metallic Blue

Specification :

  • Application : Diesel Fuel
  • Colour : Metallic Blue
  • Frame Type : Box Frame
  • Hose Inside Diameter (in) : 1-1/2
  • Hose Length (m) : 15
  • Hose Reel Type : Bare Reel
  • Includes Hose : No
  • Inlet Size (in) : 1-1/2
  • Inlet Thread Type : NPT
  • Maximum Working Pressure (psi) : 600
  • Model : XD
  • Outlet Size (in) : 1-1/2
  • Overall Height (mm) : 765
  • Overall Length (mm) : 747
  • Overall Width (mm) : 463
  • Recommended Environment : Indoor, Outdoor
  • Recommended Fluid Type : Diesel Fuel
  • Reel Thread Type : NPT
  • Series : 50
  • Type : Spring-Rewind Reel
  • Bare Reel : 1

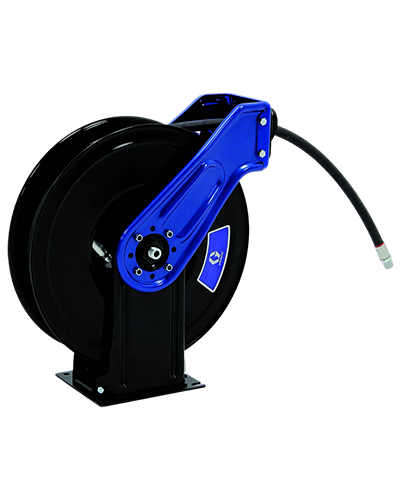

XDM65B

XDM65B

XDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Specification :

  • Application : Oil
  • Colour : Metallic Blue
  • Frame Type : Dual Pedestal
  • Hose Inside Diameter (in) : 1/2
  • Hose Length (m) : 15
  • Hose Reel Type : Reel with Hose
  • Includes Hose : Yes
  • Inlet Size (in) : 1/2 (male)
  • Inlet Thread Type : NPSM
  • Maximum Working Pressure (psi) : 2000
  • Minimum Temperature (°C) : -28
  • Mount Location : Truck Mount, Bench Mount
  • Outlet Size (in) : 1/2
  • Overall Height (mm) : 640
  • Overall Length (mm) : 594
  • Overall Width (mm) : 191
  • Recommended Environment : Indoor, Outdoor
  • Recommended Fluid Type : Oil
  • Reel Thread Type : NPT
  • Series : 20
  • Type : Spring-Rewind Reel
  • Wetted Parts : Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber
XDH55B

XDH55B

XDX™ 20, Grease, 1/2 in (13 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Specification :

  • Application : Grease
  • Colour : Metallic Blue
  • Frame Type : Dual Pedestal
  • Hose Inside Diameter (in) : 3/8
  • Hose Length (m) : 15
  • Hose Reel Type : Reel with Hose
  • Includes Hose : Yes
  • Inlet Size (in) : 1/2 (male)
  • Inlet Thread Type : NPSM
  • Maximum Working Pressure (psi) : 4800
  • Model : XDX
  • Mount Location : Truck Mount, Bench Mount
  • Outlet Size (in) : 1/4 (male)
  • Overall Height (mm) : 701
  • Overall Length (mm) : 659
  • Overall Width (mm) : 229
  • Recommended Environment : Indoor, Outdoor
  • Recommended Fluid Type : Grease
  • Reel Thread Type : NPT
  • Series : 20
  • Type : Spring-Rewind Reel
  • Maximum Temperature (°C) : 93
  • Minimum Temperature (°C) : -40
  • Wetted Parts : Zinc-Plated Steel, Polyurethane, Steel
