PerformAA Manual Spray Guns

Achieve ‘performance above all’ with manual air assist and airless spray guns that deliver superior transfer efficiency and atomization. Material-specific air caps and fine finish spray tips consistently produce high quality results.

DOWNLOAD BROCHURE
PerformAA

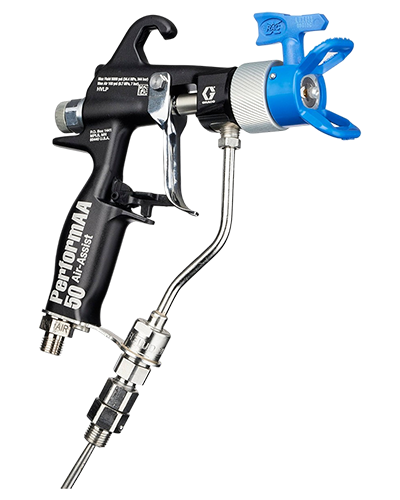

PerformAA-RAC

PerformAA RAC

PerformAA 5000 RAC Air Assist Gun with Reverse A Clean air cap and spray tip and fluid swivel.
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimised balance, trigger pull and ergonomics.

Specification :

  • Air Inlet Size (in) : 1/4
  • Air Inlet Thread Gender : Male
  • Air Inlet Thread Type : NPSM
  • Applicator Type : Manual
  • Bleed Type : Non-Bleeder
  • Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent-borne, Solve
  • Compatible Spray Tip : FFLP, LTX
  • Feed Type : Pressure Feed
  • Fluid Adjustment Knob : N/A
  • Fluid Inlet Size (in) : 1/4
  • Fluid Inlet Thread Gender : Male
  • Fluid Inlet Thread Type : NPSM
  • Gun Activation : Manual
  • Gun Included : 1
  • Gun Type : Air-Assisted Gun
  • Gun Weight (g) : 453
  • Gun Weight with Tip and Guard (g) : 490
  • Gun Weight without Tip and Guard (g) : 460
  • Maximum Air Inlet Pressure (bar) : 7
  • Maximum Air Inlet Pressure (psi) : 100
  • Maximum Air Pressure (bar) : 7
  • Maximum Air Pressure (psi) : 100
  • Maximum Fluid Pressure (bar) : 345
  • Maximum Fluid Pressure (psi) : 5000
  • Maximum Fluid Temperature (°C) : 43
  • Model : PerformAA RAC
  • Overall Height (mm) : 198
  • Overall Length (mm) : 183
  • Product Type : Spray Gun
  • Sound Power Level (dB(A)) : 72.3
  • Sound Pressure Level (dB(A)) : 62.6
  • Spray Pattern : Flat
  • Spray Type : Air-Assisted
  • Technology Type : N/A
  • Trigger Lock : Locking
  • Trigger Type : Two-Finger
  • Type : Spray Gun
  • Wetted Parts : Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer

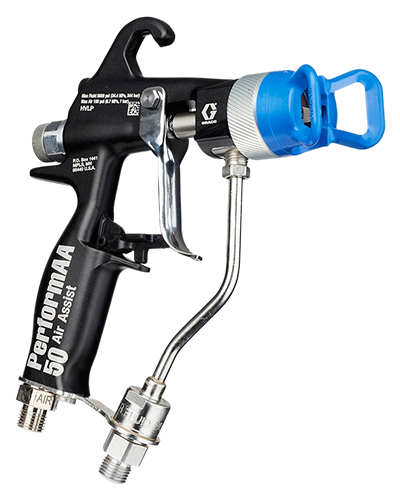

PerformAA-50

PerformAA 50

PerformAA 5000 Air Assist Gun with General Finishing air cap.
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimised balance, trigger pull and ergonomics.

Specification :

  • Air Inlet Size (in) : 1/4
  • Air Inlet Thread Gender : Male
  • Air Inlet Thread Type : NPSM
  • Applicator Type : Manual
  • Bleed Type : Non-Bleeder
  • Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent-borne, Solve
  • Compatible Spray Tip : AXM, AXF
  • Feed Type : Pressure Feed
  • Fluid Adjustment Knob : Clicking
  • Fluid Inlet Size (in) : 1/4
  • Fluid Inlet Thread Gender : Male
  • Fluid Inlet Thread Type : NPSM
  • Gun Activation : Manual
  • Gun Included : 1
  • Gun Type : Air-Assisted Gun
  • Gun Weight (g) : 453
  • Gun Weight with Tip and Guard (g) : 490
  • Gun Weight without Tip and Guard (g) : 460
  • Maximum Air Inlet Pressure (bar) : 7
  • Maximum Air Inlet Pressure (psi) : 100
  • Maximum Air Pressure (bar) : 7
  • Maximum Air Pressure (psi) : 100
  • Maximum Fluid Pressure (bar) : 345
  • Maximum Fluid Pressure (psi) : 5000
  • Maximum Fluid Temperature (°C) : 43
  • Model : PerformAA 50
  • Overall Height (mm) : 208
  • Overall Length (mm) : 173
  • Product Type : Spray Gun
  • Sound Power Level (dB(A)) : 72.3
  • Sound Pressure Level (dB(A)) : 62.6
  • Spray Pattern : Flat
  • Spray Type : Air-Assisted
  • Technology Type : N/A
  • Trigger Lock : Locking
  • Trigger Type : Two-Finger
  • Type : Spray Gun
  • Wetted Parts : Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer

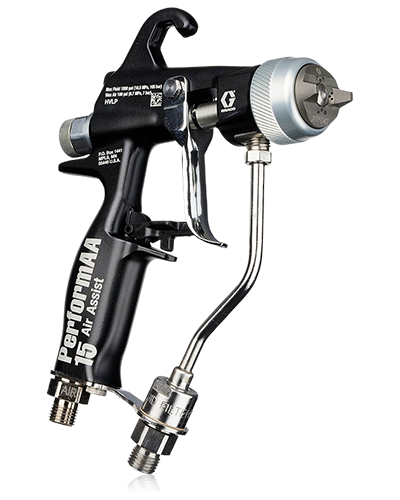

PerformAA-15

PerformAA 15

PerformAA 1500 Air Assist Gun with Gen Finish air cap, plastic seat and St Steel ball.
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimised balance, trigger pull and ergonomics.

Specification :

  • Air Inlet Size (in) : 1/4
  • Air Inlet Thread Gender : Male
  • Air Inlet Thread Type : NPSM
  • Applicator Type : Manual
  • Bleed Type : Non-Bleeder
  • Compatible Material : Acid Catalysed, Lacquer, Latex, Plural Component Materials, Solvent-borne, Sol
  • Feed Type : Pressure Feed
  • Fluid Adjustment Knob : Clicking
  • Fluid Inlet Size (in) : 1/4
  • Fluid Inlet Thread Gender : Male
  • Fluid Inlet Thread Type : NPSM
  • Gun Activation : Manual
  • Gun Included : 1
  • Gun Type : Air-Assisted Gun
  • Gun Weight (g) : 453
  • Gun Weight with Tip and Guard (g) : 480
  • Gun Weight without Tip and Guard (g) : 460
  • Maximum Air Inlet Pressure (bar) : 7
  • Maximum Air Inlet Pressure (psi) : 100
  • Maximum Air Pressure (bar) : 7
  • Maximum Air Pressure (psi) : 100
  • Maximum Fluid Pressure (bar) : 105
  • Maximum Fluid Pressure (psi) : 1500
  • Maximum Fluid Temperature (°C) : 43
  • Model : PerformAA 15
  • Overall Height (mm) : 208
  • Overall Length (mm) : 152
  • Product Type : Spray Gun
  • Sound Power Level (dB(A)) : 72.3
  • Sound Pressure Level (dB(A)) : 62.6
  • Spray Pattern : Flat
  • Spray Type : Air-Assisted
  • Technology Type : N/A
  • Trigger Lock : Locking
  • Trigger Type : Two-Finger
  • Type : Spray Gun
  • Wetted Parts : Stainless Steel, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer
