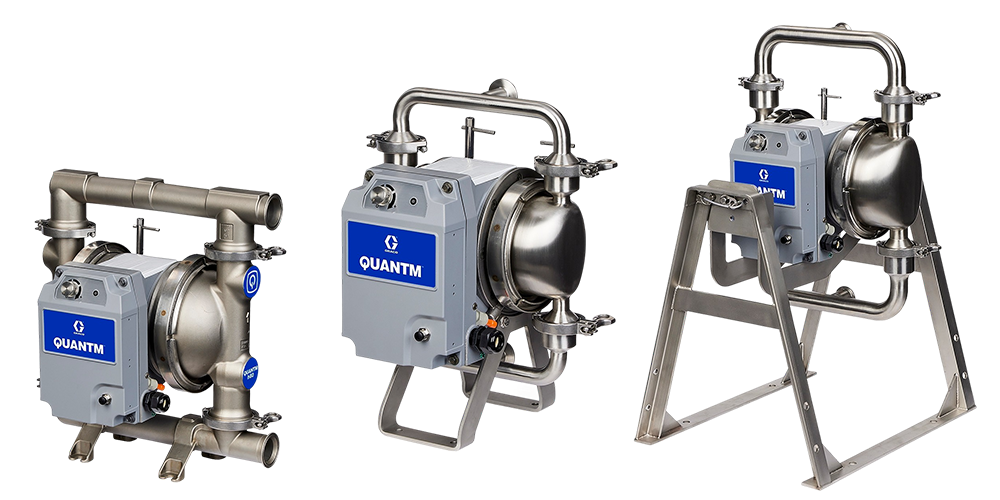

QUANTM HYGIENIC Electric Double Diaphragm Pumps

The Graco QUANTM Electric double diaphragm (EODD) pump is revolutionary for end users. It's quiet, clean, safe and powerful. It drives immediate, sustained and highly measurable energy savings, helping users meet sustainability goals.

DOWNLOAD BROCHURE
QUANTM-HYGIENIC

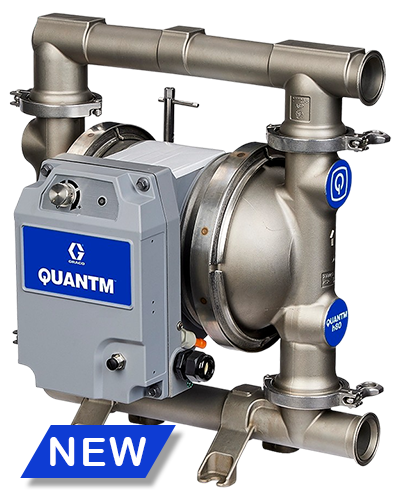

HE120-0001

HE120-0001

QUANTM h120, 2" FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, CW Ball, PS Diaphragm

Specification :

  • Application : Food, Beverage, Personal Care, Pharmaceutical
  • Ball Material : Polychloroprene Weighted
  • Center Section Material : FEP Coated Aluminum
  • Configuration Code : QHE-FGFF1SSCWPSPTS130021
  • Connection Type : Tri-Clamp
  • Construction : 316L Stainless Steel, 316 Stainless Steel, PTFE, Polychloroprene Weighted, PTFE/Santoprene 2-Piece
  • Cord Length (m) : 4.57
  • Diaphragm Material : PTFE/Santoprene 2-Piece
  • Fluid Inlet Size (in) : 2-1/2 Tri-Clamp
  • Fluid Outlet Size (in) : 2-1/2 Tri-Clamp
  • Fluid Passage Size (in) : 2
  • Fluid Section : 316 Stainless Steel, End Port, Tri-Clamp
  • Fluid Section Material : 316 Stainless Steel
  • Hazardous Location Approval : None
  • Manifold Configuration : End Port
  • Manifold O-Ring Material : PTFE
  • Material Certification : EN 1024:2004 Type 2.1 (Standard)
  • Maximum Ambient Temperature (°C) : 40
  • Maximum Amperage (A) : 7.5
  • Maximum Flow Rate (L/min) : 454
  • Maximum Fluid Operating Temperature (°C) : 82
  • Maximum Fluid Pressure (bar) : 4.14
  • Maximum Fluid Pressure (psi) : 60
  • Maximum Solid Size (mm) : 6.35
  • Minimum Fluid Operating Temperature (°C) : -40
  • Model : QUANTM
  • Motor Type : Electric Drive
  • Pump Size (mm) : 51
  • Seat Material : 316 Stainless Steel
  • Series : h120
  • Standards Met : FDA Compliant Materials
  • Surface Finish : 125 Ra
  • Tri-Clamp Connection Size : 2.5 in.
  • Type : Electric Diaphragm Pump
  • Voltage (V ac) : 200-240 VAC 3P

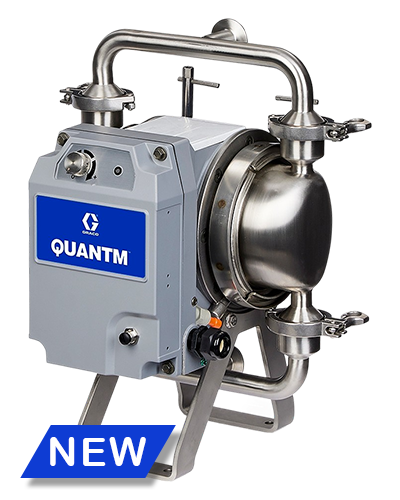

HE30-0754

HE30-0754

QUANTM h30, 1"Tri-clamp, HS SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PO Diaphragm

Specification :

  • Application : Food, Beverage, Personal Care, Pharmaceutical
  • Ball Material : PTFE
  • Center Section Material : FEP Coated Aluminum
  • Configuration Code : QHC-HSFF3SSPTPOEPSSA0021
  • Connection Type : Tri-Clamp
  • Construction : 316L Stainless Steel, EPDM, PTFE, PTFE Overmold
  • Cord Length (m) : 4.57
  • Diaphragm Material : PTFE Overmold
  • Fluid Inlet Size (in) : 1 Tri-Clamp
  • Fluid Outlet Size (in) : 1 Tri-Clamp
  • Fluid Passage Size (in) : 1
  • Fluid Section : 316L Stainless Steel, Center Port, Tri-Clamp
  • Fluid Section Material : 316L Stainless Steel
  • Hazardous Location Approval : Class 1, Division 1, ATEX, IECEx
  • Manifold Configuration : Center Port
  • Manifold O-Ring Material : EPDM
  • Material Certification : EN 1024:2004 Type 2.1 (Standard)
  • Maximum Ambient Temperature (°C) : 40
  • Maximum Amperage (A) : 7.5
  • Maximum Flow Rate (L/min) : 114
  • Maximum Fluid Operating Temperature (°C) : 82
  • Maximum Fluid Pressure (bar) : 6.9
  • Maximum Fluid Pressure (psi) : 100
  • Maximum Solid Size (mm) : 10.7
  • Minimum Fluid Operating Temperature (°C) : -40
  • Model : QUANTM
  • Motor Type : Electric Drive
  • Pump Size (mm) : 25
  • Seat Material : 316 Stainless Steel
  • Series : h30
  • Standards Met : FDA Compliant Materials
  • Surface Finish : 32 Ra
  • Tri-Clamp Connection Size : 1 in.
  • Type : Electric Diaphragm Pump
  • Voltage (V ac) : 200-240 VAC 3P

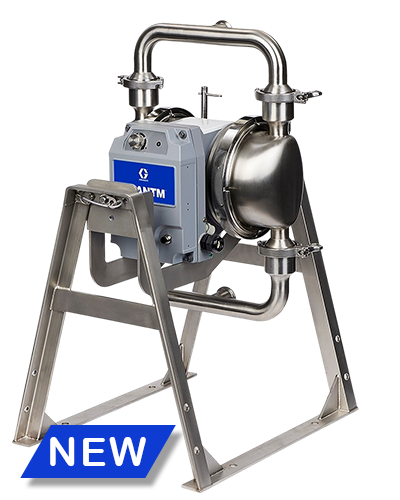

HE120-0101

HE120-0101

QUANTM h120, 2"Tri-clamp, 3A SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PO Diaphragm

Specification :

  • Application : Food, Beverage, Personal Care, Pharmaceutical
  • Ball Material : PTFE
  • Center Section Material : FEP Coated Aluminum
  • Configuration Code : QHE-3AFF1SSPTPOEPSSA0021
  • Connection Type : Tri-Clamp
  • Construction : 316L Stainless Steel, EPDM, PTFE, PTFE Overmold
  • Cord Length (m) : 4.57
  • Diaphragm Material : PTFE Overmold
  • Fluid Inlet Size (in) : 2 Tri-Clamp
  • Fluid Outlet Size (in) : 2 Tri-Clamp
  • Fluid Passage Size (in) : 2
  • Fluid Section : 316 Stainless Steel, Center Port, Tri-Clamp
  • Fluid Section Material : 316 Stainless Steel
  • Hazardous Location Approval : None
  • Manifold Configuration : Center Port
  • Manifold O-Ring Material : EPDM
  • Material Certification : EN 1024:2004 Type 2.1 (Standard)
  • Maximum Ambient Temperature (°C) : 40
  • Maximum Amperage (A) : 7.5
  • Maximum Flow Rate (L/min) : 454
  • Maximum Fluid Operating Temperature (°C) : 82
  • Maximum Fluid Pressure (bar) : 4.14
  • Maximum Fluid Pressure (psi) : 60
  • Maximum Solid Size (mm) : 12.7
  • Minimum Fluid Operating Temperature (°C) : -40
  • Model : QUANTM
  • Motor Type : Electric Drive
  • Pump Size (mm) : 51
  • Seat Material : 316 Stainless Steel
  • Series : h120
  • Standards Met : 3A, FDA Compliant Materials
  • Surface Finish : 32 Ra
  • Tri-Clamp Connection Size : 2 in.
  • Type : Electric Diaphragm Pump
  • Voltage (V ac) : 200-240 VAC 3P
