MEIJIFLEX

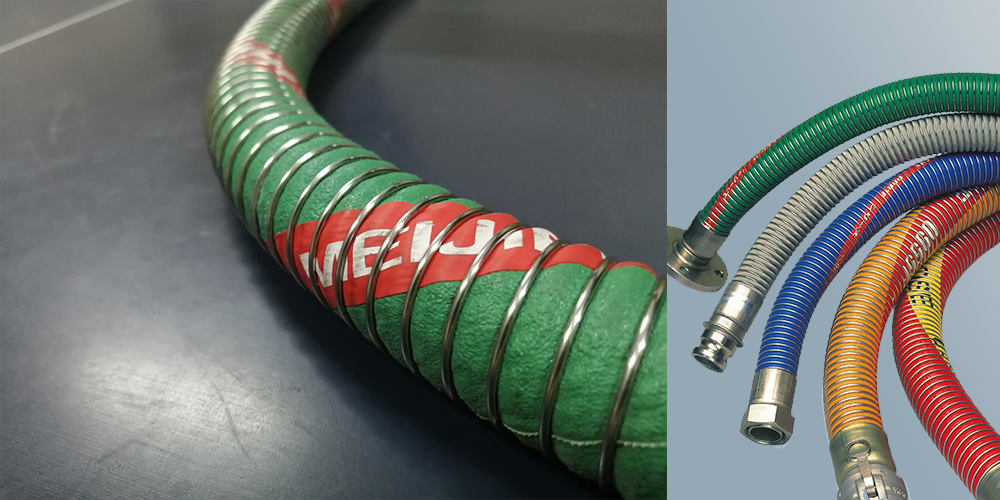

MEIJIFLEX Composite Hose

Our hoses are called COMPOSITE HOSE, with multi-layers plastic films, tubes, clothes, and spiral wires.
This structure have excellent performance by follow features.
* Safety
* Wide chemical resistance
* Light and flexible
* High Flexibility
* High Durability for repeated bending.

DOWNLOAD BROCHURE
MEIJIFLEX

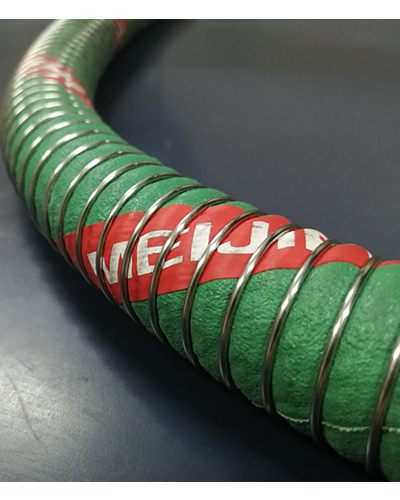

0969F-S

0969F-S

Cargo Hose, This is a multi-purpose hose for general use with abrasive and volatile chemicals. This type of hose achieves lower pressure loss and permits easier cleaning due to a newly-developed smooth inner surface.
Inner Dia. (in) : Outer Dia. (mm) : Min. bending radius (mm) : Max. Pressure (MPa) : Weight (kg/m) : Weight of fittings at both ends JIS 10K (kg) : Max. Product Length (m)

Specification :

  • 4" : 123 mm : 500 mm : 1.0 MPa : 7.2 kg/m : 16.0 kg : 20 m
  • 4-1/2" : 135 mm : 550 mm : 1.0 MPa : 8.2 kg/m : 17.0 kg : 15 m
  • 5" : 148 mm : 600 mm : 1.0 MPa : 8.8 kg/m : 22.0 kg : 15 m
  • 6" : 175 mm : 650 mm : 1.0 MPa : 10.8 kg/m : 32.0 kg : 15 m

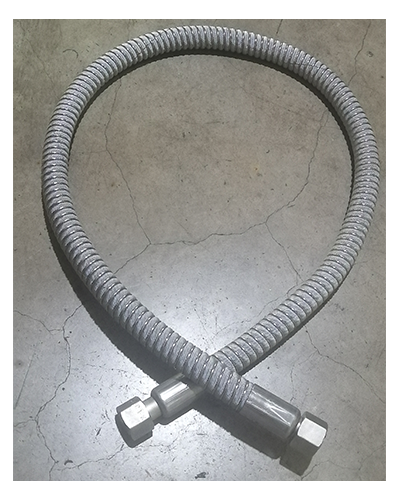

0901F-S

0901F-S

Chemical Hose, A wide range of applications that include gasoline, heavy oil, lubricant, animal and vegetable oil and BTX, ketone, thinner and ink, paint, alcohol, and others.
Inner Dia. (in) : Outer Dia. (mm) : Min. bending radius (mm) : Max. Pressure (MPa) : Weight (kg/m) : Max. Product Length (m)

Specification :

  • 1/2" : 22 mm : 50 mm : 1.4 MPa : 0.4 kg/m : 12 m
  • 3/4" : 30 mm : 75 mm : 1.4 MPa : 0.6 kg/m : 20 m
  • 1" : 37 mm : 100 mm : 1.4 MPa : 0.7 kg/m : 20 m
  • 1-1/2" : 50 mm : 150 mm : 1.4 MPa : 1.2 kg/m : 20 m
  • 2" : 64 mm : 170 mm : 1.4 MPa : 1.9 kg/m : 20 m
  • 2-1/2" : 78 mm : 200 mm : 1.4 MPa : 2.1 kg/m : 20 m

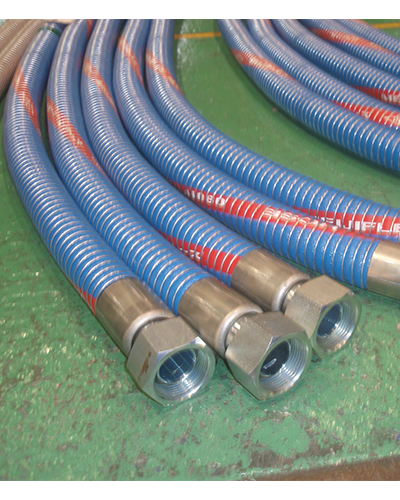

0901F

0901F

Oil and Solvent Hose, A wide range of applications that include gasoline, heavy oil, lubricant, animal and vegetable oil and BTX, ketone, thinner and ink, paint, alcohol, and others.
Inner Dia. (in) : Outer Dia. (mm) : Min. bending radius (mm) : Max. Pressure (MPa) : Weight (kg/m) : Max. Product Length (m)

Specification :

  • 1/2" : 22 mm : 50 mm : 1.4 MPa : 0.4 kg/m : 12 m
  • 3/4" : 30 mm : 75 mm : 1.4 MPa : 0.6 kg/m : 20 m
  • 1" : 37 mm : 100 mm : 1.4 MPa : 0.7 kg/m : 20 m
  • 1-1/2" : 50 mm : 150 mm : 1.4 MPa : 1.2 kg/m : 20 m
  • 2" : 64 mm : 170 mm : 1.4 MPa : 1.9 kg/m : 20 m
  • 2-1/2" : 78 mm : 200 mm : 1.4 MPa : 2.1 kg/m : 20 m
